Gate valves are more commonly used in refineries and petrochemical plants where pressure remains relatively low, but temperature may be very high.

What is gate valve in oil industry?

Gate Valves The function of the gate valve is to start or stop a flow when a straight-line flow of fluid and minimum flow restriction is needed. During use, gate valves are kept either fully open or fully closed. The disc of the gate is completely removed when turned open, allowing contents to pass through.

What is the meaning of gate valve?

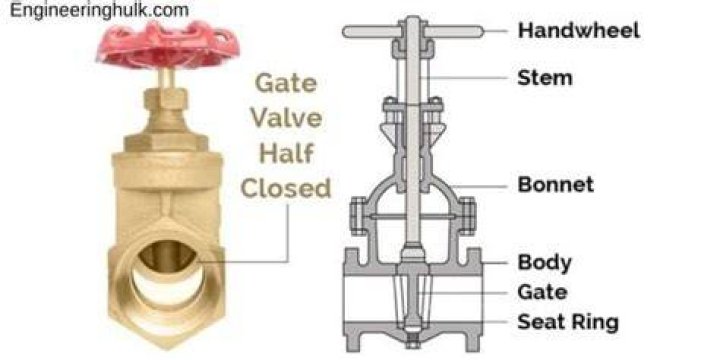

Definition of gate valve : a valve in a pipeline consisting essentially of a flat or wedge-shaped gate that can be lowered into a seat to seal off the line or raised into an external recess so that the full area of the line is open — compare globe valve.

Why do we use gate valve?

Gate valves are used to shut off the flow of liquids rather than for flow regulation. When fully open, the typical gate valve has no obstruction in the flow path, resulting in very low flow resistance. The size of the open flow path generally varies in a nonlinear manner as the gate is moved.

What is gate valve application?

Gate valves are used in many industrial applications including the oil and gas industry, pharmaceuticals, manufacturing, automotive, and marine. Non-rising stem gate valves are very popular on ships, in underground applications, or where vertical space is limited because they don’t take up extra space.

How does OS Y valve work?

OS&Y means “outside stem and yoke” or “outside screw and yoke”. OS&Y gate valves operate by opening and closing via a gate, which lowers into or rises out of the valve. Raising the gate allows water to flow through the valve while lowering the gate cuts off the water flowing through the valve.

What type of valve is a gate valve?

A gate valve is the most common type of valve used in any process plant. It is a linear motion valve used to start or stop fluid flow. In service, these valves are either in a fully open or fully closed position. When the gate valve is fully open, the disk of a gate valve is completely removed from the flow.

Are gate valves full port?

To my experience, gate valves are usually always “full port”. Gate valves are usually only used in on/off service (they are either open or closed), and a full port gives the least pressure lost.

Do gate valves restrict flow?

The familiar outdoor spigot for a garden hose offers an example of a gate valve. Gate valves allow customers to control the rate of the flow of water, such as slow trickles as opposed to the full flow, but do not provide an immediate stop.

What is a gate valve made of?

Gate valves are typically constructed from cast iron, cast carbon steel, ductile iron, gunmetal, stainless steel, alloy steels, and forged steels. All-metal gate valves are used in ultra-high vacuum chambers to isolate regions of the chamber.

What is an O’s and Y valve?

An OS&Y Valve (outside screw & yoke) functions by opening and closing via a gate, which lowers both in and out of the valve. When the handle is turned clockwise the gate will close preventing any water from traveling through the valve.

What is the difference between gate valve and butterfly valve?

The purpose and use of both gate and butterfly valves are same. The difference between the both valves lies in shape, size and operation. Butterfly valves are lighter than gate valves, so for the big sizes it is convenient to install and operate butterfly valve because it is lighter and compact in compare to gate valves.

What is an OS and Y valve?

O S & Y valves contain a screw nut held by a yolk, or beam, on the exterior of the valve. A wheel in the valve attaches to the nut, which turns via external screw threads, allowing the shaft to rise from or lower into the valve body.

What is the difference between gate valve and globe valve?

Gate valves either allow or bar the passage of hydraulic fluid, and globe valves adjust the flow of hydraulic fluid between fully on and fully off. Gate valves are plate-like, and globe valves are circular.
