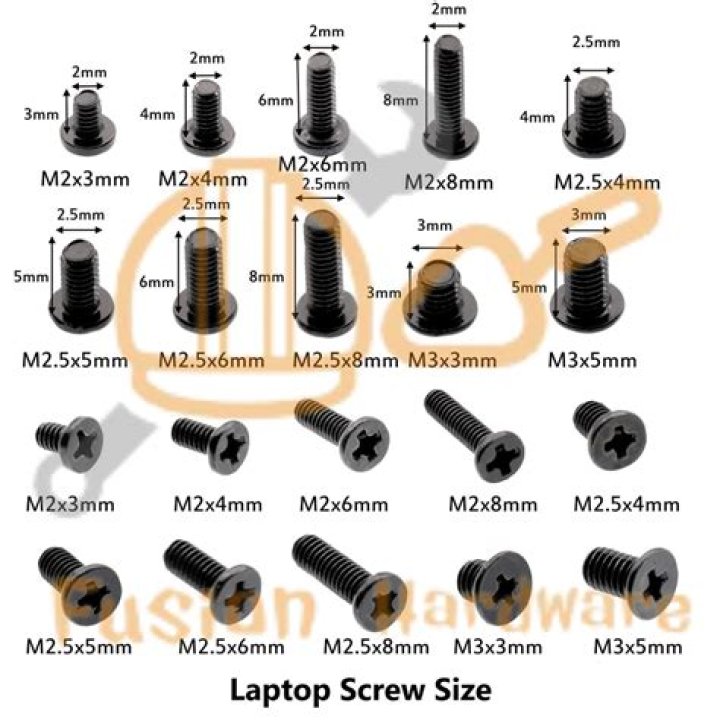

What size are M2 screws?
Mia Russell The “M” designation for metric screws indicates the outer diameter of the screw in millimetres, so for an M2 screw, the outer diameter is 2mm. However, in practice the actual diameter might be between 1.9mm-2mm due to manufacturing tolerances.
What is a M5 screw?
In the case of a metric thread, the bolt is named in accordance with its outer diameter e.g a bolt with a 5 mm outer diameter is known as an M5 bolt. The “Pitch” of the tread is another important feature of a thread.
What is a 6 48 screw?
6-48 screws. These screws are USA made, T15 Torx head drive, spec hardened for mounting applications, these screws are designed with a 45 degree taper under the head to seat into a 45 degree counterbore that we use on our 6-48 screw hole mounts.
What screw is used for M 2?
The correct screw size is 2.0 x 3mm (CM2x3-3.3).
What diameter is M2?
2mm
| Tap size | Basic major dia (mm) | Basic major dia (inch) |
|---|---|---|
| M1.6 x 0.35 | 1,6mm | .0630 |
| M2 x 0.4 | 2mm | .0787 |
| M2.5 x 0.45 | 2,5mm | .0984 |
| M3 x 0.5 | 3mm | .1181 |
What is M2 thread size?
ISO Metric Machine Screw Thread Dimensions
| Thread Size | Nominal Diameter (mm) | Thread Pitch (mm) |
|---|---|---|
| M1.6 | 1.6 | 0.35 |
| M1.8 | 1.8 | 0.35 |
| M2 | 2.0 | 0.40 |
| M2.2 | 2.2 | 0.45 |
What does M stand for in screws?
The “M” designation for metric screws indicates the nominal outer diameter of the screw thread, in millimetres. This is also referred to as the “major” diameter in the information below.
What does the M stand for in bolt size?
Taking a closer look at this description, let’s explore its meaning: M = This designates the fastener is a metric size. 10 = The nominal diameter in millimeters. 1.0 = The thread pitch, or distance between threads, in millimeters. 20 = The fastener’s length, in millimeters.
What is a fillister screw?
A Fillister head machine screw, sometimes called a cheese head screw, is similar to a Pan head machine screw but with greater side height. Fillister head screws are the preferred head type for counterbored holes. They are similar to a Pan head machine screw but with greater side height.
What is an 8 40 screw?
160 Diameter x . 470 length)
What are the different types of machine screws at Lowes?
We have other types of machine screws, too, like socket head cap screws, plastic screws as well as M3 screws. Lowe’s knows that being able to securely fasten work pieces together is important to successfully completing your project — and we have the machine screws you need to get the job done.
What are metric screws made out of?
These metric screws have a nylon patch bonded to the threads that adds friction to prevent loosening from vibration. Made from 18-8 stainless steel, they have good chemical resistance and may be mildly magnetic. These metric screws have a silicone O-ring that prevents leaks and seals out contaminants.
What kind of screws are used for cheese screws?
With a narrower head than pan head screws, these cheese head screws fit in tight spaces, such as in electrical panels and next to flanges and raised surfaces. Made from nylon, these screws are chemical and oil resistant, nonconductive, and lightweight. 18-8 stainless steel screws have good chemical resistance and may be mildly magnetic.
What is the difference between 316 and 18 8 screws?
These metric 316 stainless steel screws resist corrosion from chemicals and salt water better than 18-8 stainless steel screws. They may be mildly magnetic. A zinc plating makes these metric pan head screws corrosion resistant in wet environments.
