The left side turn signal and brake light is generally the yellow wire going into your trailer connector. The first thing to do is check the fuses on your tow vehicle. If the problem is there then you need to clean it, if necessary, and if that doesn’t fix it the problem is in your vehicle.

Can I replace my trailer lights with LED?

Replacing the lights on your trailer with LED lights isn’t a difficult task. You can buy replacement LED lights in a kit or each light individually. To simplify the task, purchase LED lights with the same mounting style as your existing incandescent lights.

Why wont my turn signals work on my trailer?

If your signal lights and stop lights are working in the truck, then the problem has to be one of the following: The fuse that controls the right side lights in the trailer is faulty, your connectors (truck or trailer side) is faulty, your cable between the truck and the trailer is faulty, the wiring in the truck or …

What is a 7 function trailer light?

Incandescent trailer tail light serves 7 functions: stop, turn, tail, rear reflex, side marker, side reflex, and license light. Shock-proof sockets protect bulbs.

Why is only one side of my trailer lights working?

Poor ground connections are the most common culprit of trailer wiring issues. The lights will have either a ground wire or they will ground through the mounting hardware. With the trailer connected to the tow vehicle, use your circuit tester to test the left side stop/turn and running light circuits.

Are LED trailer lights worth it?

A study by the University of Michigan’s Transportation Research Institute found that LED lamps respond, on an average, 1/5-of-a-second faster than standard incandescent lamps. Using test results at 65 mph, LEDs improved reaction time and decreased braking distance by 16 feet.

Why won’t my LED trailer lights work?

Many trailer problems are due to a poor grounding connection, which is usually the white wire coming out of the trailer plug. If the ground is poor, lights may work intermittently or not at all. Even if the wiring to the plug is adequate, make sure that the ground connections to the trailer frame are good.

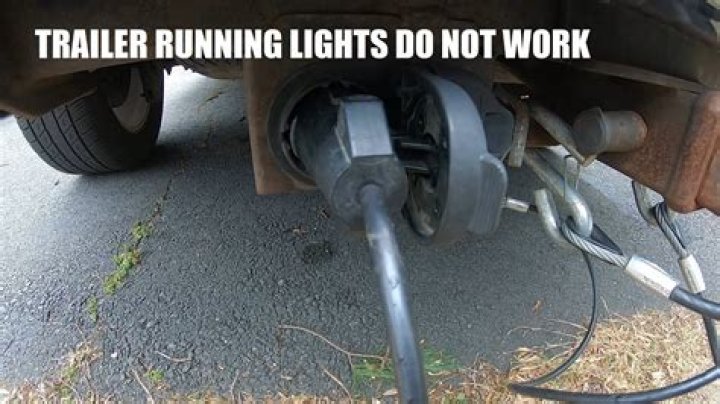

Why do all my trailer lights work except running lights?

You will want to make sure the ground has contact with a bare, clean, metal surface of the trailer frame. If there is any rust or corrosion at the light ground, try relocating the light grounds to a suitable location.

Why do my running lights work but not my brake lights?

The most common reason your brake lights are not working but tail lights do is a bad light bulb. It can also be caused by a blown fuse, bad brake light switch, or issues with the wirings. Your vehicle’s taillights are working fine, but the brake lights don’t come on when you press the brakes.

What is an 8 function trailer light?

The 8-function light provides stop, tail, turn, rear and side reflex, rear clearance and side marker and license illumination functions. The stop/tail/turn lights feature universal back & side mount options.

What are the dimensions of a trailer light?

3-3/4″ x 1-5/8″ Oval. Trailer light with reflector functions as a clearance or side marker light. Durable polycarbonate base and lens. Mounts on surface of trailer – hardware not included. 2-Wire pigtail. P2 rated. 8-11/16″ x 3-7/8″ Rectangle. LED Trailer light with 22 diodes provides stop, turn, and tail light function.

How many diodes does a trailer light have?

Command Electronics Rectangular LED trailer light with 22 diodes provides stop, turn, and tail light functions and an incandescent license plate light. Durable black polycarbonate base. Surface mounts to driver side of trailer with included bracket. 3-Wire pigtail.

What is tratrailer light?

Trailer light with reflector functions as a clearance or side marker light. Durable polycarbonate base and lens. Mounts on surface of trailer – hardware not included. 2-Wire pigtail. P2 rated. 8-11/16″ x 3-7/8″ Rectangle. LED Trailer light with 22 diodes provides stop, turn, and tail light function. Durable black polycarbonate base.

What is tritriple trailer light?

Triple trailer light provides stop, turn signal, tail, and backup light functions. Durable polycarbonate base and lens. Mounts on surface of trailer – hardware not included. Pre-wired design. LED Trailer Tail Light with Reflector – Stop, Turn, Tail – Submersible – Red Lens 5-3/8″ Round.
