Which conductor is used in 132kV line?
Daniel Lopez For 132 KV Lines: Special ‘Panther’ conductor, i.e. one Aluminium layer of ACSR ‘Panther’ conductor removed having 7-strands of Steel of 3.00 mm dia plus 12-Aluminium strands of 3.00 mm dia.
What is the safe distance from 132kV power line?
Minimum Approach Distance for Authorized Person
| Voltage | Distance (minimum) |
|---|---|
| 22 KV to 33 KV | 1.0 Meter |
| 33 KV to 66 KV | 1.0 Meter |
| 66 KV to 132 KV | 1.2 Meter |
| 132 KV to 220 KV | 1.8 Meter |
What is 132kV transmission?
In the UK, 132kV is the standard primary transmission voltage operated by the DNOs (it is also known as a sub-transmission voltage), the voltages above this point (275kV and 400kV) are full transmission voltages and run by National Grid (of SSE / SPEN in Scotland).
What distance is safe for 11 kv power lines?
1.2 metres
As per the Indian Electricity Act, buildings should maintain a horizontal distance of 1.2 metres from 11kV lines and 4 metres from 66kV lines.
What are the conductors used in transmission line?

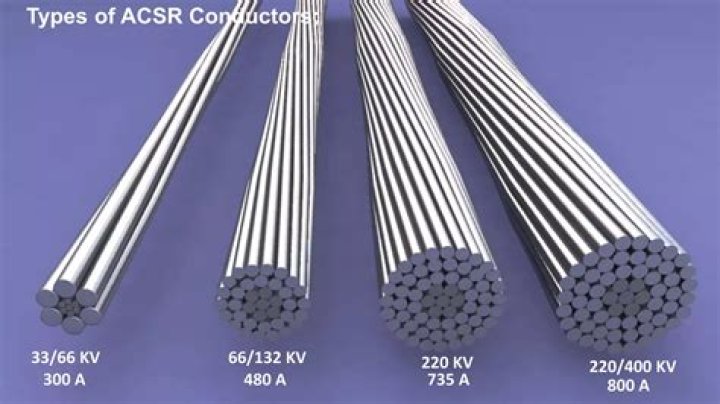

The most common conductor in use for transmission today is aluminum conductor steel reinforced (ACSR). Also seeing much use is all-aluminum-alloy conductor (AAAC). Aluminum is used because it has about half the weight and lower cost of a comparable resistance copper cable.
What is the minimum clearance provided for the 132KV line from the ground?
So, as per logic, the ground clearance of 132KV bottom conductor would be, 5.2 + 0.9 = 6.1 meter. The minimum clearance of 66KV transmission line is also taken as 6.1 meters.
What is the minimum clearance when 11 66 KV crosses with 400 kv?
Vertical Clearance between Electrical Line and railway tracks
| KV | Clearance (Min) |
|---|---|
| 66 KV | 14 Meter |
| 132 KV | 14.6 Meter |
| 220 KV | 15.4 Meter |
| 400 KV | 17.9 Meter |
Is 132kV a transmission or distribution?
Larger generation schemes usually connect to the Transmission system. The lower voltage parts of the system are called distribution networks. In Scotland, these local networks operate below 132kV whereas in England the distribution network includes 132kV.
What is 11KV line?
The 11kV lines are used in residential areas and is what feeds the local transformers, which then distributes power to the buildings in the area. This power can then be safely distributed in order to power a town near the transformer.
What is the safe distance from 220 kv power line?
Minimum clearance of 6.1 meters has to be maintained at all points between 400 KV and 220 KV line conductors under worst condition.
What are the safety considerations in power transmission line construction?
From safety considerations, power conductors along the route of the transmission line should maintain requisite clearances to ground in open country, national highways, rivers, railways, tracks, telecommunication lines, other existing power lines.
What is a transmission line?
The term Transmission Lines broadly refers to overhead transmission lines and underground cables. The key function of a transmission line is to transfer bulk power between generation sources and load centres. ElectraNet owns, manages and operates transmission lines at 275kV, 132kV and 66kV.
What is the size of a 115 kV power line?
161-kV and 115-kV structures are generally single pole structures between 70 and 95 feet tall. 69-kV through 23-kV systems transmit power to distribution substations.
What is the document number for transtransmission line general requirements?
Transmission Line General Requirements Including Typical Overhead Line Structures Document Number: 1-03-FR-09 VERSION 1.0 June 2018
