The pressure rating of the relief valve must be equal to or less than the MAWP of the vessel. Most water heaters have an MAWP of 150 psi; however, some are rated higher, typically 160 psi. Some storage vessels have a lower pressure rating; they are commonly rated 125 psi.

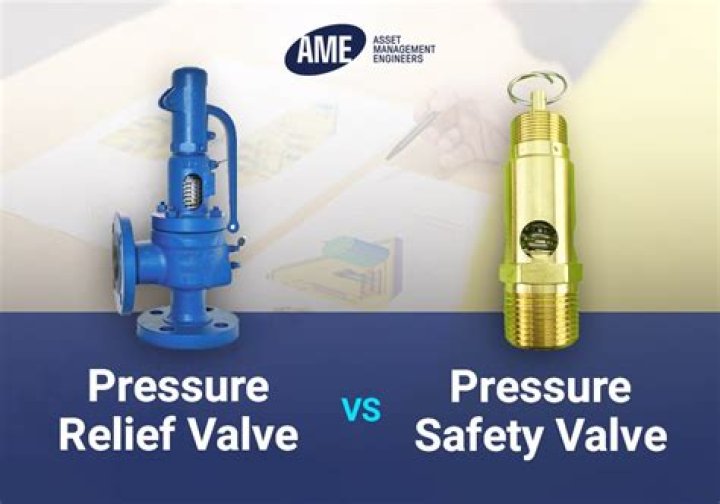

What is the difference between a safety valve and a relief valve?

Relief Valves are designed to control pressure in a system, most often in fluid or compressed air systems. These valves open in proportion to the increase in system pressure. Unlike relief valves, safety valves open immediately and completely to avoid a disaster, rather than to control the pressure of a system.

What is the purpose of a Kunkle valve?

Kunkle invented the safety valve, which he patented in 1875, to prevent overpressure in locomotive engines.

How do you adjust pressure relief valve?

Adjust the relief valve by turning the adjuster clockwise until the reading on the gauge builds to the pressure called for on the machine drawings. This is what is known as the valve “cracking” pressure, which is the pressure at which the relief valve starts to open.

What is creep relief valve?

Creep relief Valve: A slight weeping of pressure regulator/ increase in downstream due to rise in downstream surrounding temperature result in increasing the downstream pressure to dangerous level, such creep pressure is blown off through creep relief valve.

What is the difference between PRV and TRV?

There is no difference between TRV and PRV in function point of view. Anyway, if you mean you may have overpressure due to blocked outlet on pump discharge line (pump in shut off condition) a PRV would perform the duty.

What are the most popular Kunkle relief valves?

Some of the most popular Kunkle relief valve models are 337, 215V, 557 & 910. Select from the largest range o f Kunkle Valves for your industrial need and if you can’t seem to find it or need help please contact us.

What is a pressure relief valve made out of?

Kunkle manufacturers high quality relief and safety relief valves for many different applications, including steam, air, liquid and non-hazardous gases. These Pressure Relief Valves come in a variety of sizes and set pressures and can be constructed using Aluminum, Brass, Bronze, Carbon Steel, Stainless Steel, and Cast Iron.

What certifications does the Kunkle Valve Company provide?

Kunkle Valve provides code certifications that meet various global standards such as ASME, PED, CRN, TU and Chinese as well as non-code requirements. The breadth of the Kunkle Valve product offering is second to none in terms of industrial and commercial safety and relief valve products.

What are the ASME codes for pressure relief valves?

Kunkle valves are manufactured at facilities that meet the manufacturing requirements of the ASME Sections I, IV and VIII codes for pressure relief valves. Valves that have the relief capacity certified by the National Board of Boiler and Pressure Vessel Inspectors bear the following code symbol stamp on the nameplate and the letters NB.
