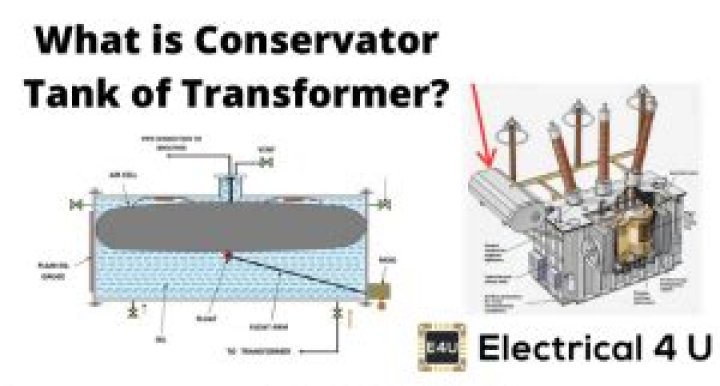

Definition: A conservator tank can be defined as, a tank that is placed on the transformer’s roof to provide sufficient space for oil expansion in the transformer.

What is the purpose of a conservator in a transformer?

The function of a conservator is to take up contraction and expansion of oil without allowing it to come in contact with outside air.

What is the function of a conservator tank?

The Conservator Tank is simply a tank that is used to provide enough space for the oil in the transformer to spread after heating. It is placed on the roof of the transformer. The main function of the Conservator Tank is that once the transformer is loaded, its temperature rises, and the oil in it starts spreading.

What is function of conservator and breather in transformer?

Function of Conservator Tank of a Transformer When transformer is loaded and when ambient temperature rises, the volume of oil inside transformer increases. A conservator tank of transformer provides adequate space to this expanded transformer oil. It also acts as a reservoir for transformer insulating oil.

Which type of transformer has less magnetic leakage?

Shell type transformer has minimum leakage flux. Hence fewer losses. Maintenance of this type of transformer is simple. The maintenance of this type of transformer is complex.

What is a transformer tank?

General Information. Transformer tank also named transformer tank body. It is used to hold, protect, cool the winding and core in one Electrical distributor transformer. The tank body provides isolation of oil and the core from the outside environment.

What should be the oil level in conservator tank?

The design consideration for power transformer is to cope up the oil level increment with temperature. As per IEC the conservator design should be considering oil level increment with temperature ranging from -25°C to plus 110°C.

Why transformer oil is filled in the tank?

The Oil (known as Transformer Oil, Ref – IS 335) serves the purpose of providing insulation to the transformer winding. It also helps in the cooling of the transformer.

What is aircell in transformer?

The TCM Air-cell acts as a barrier to separate undesirable elements in the atmosphere, such as water vapor, nitrogen, ozone and oxygen, from transformer oil within a conservator. This barrier also reduces condensation and oxidation inside the transformer and suppresses gas bubble formation in the transformer oil.

The main function of conservator tank of transformer is to provide adequate space for expansion of oil inside the transformer. Function of Conservator Tank of a Transformer

Why is conservator used in transformer?

Conservator is the most vital part of the transformer, because the Conservator tank takes up the expansion & contraction of oil during running operation .

What is the use of a conservator in transformer?

Purpose of Conservator Tank. The main purpose of the conservator tank is to maintain the transformer oil in the main tank.

What is the function of the conservator in a transformer?

A conservator is a device that regulates or conserves the oil levels in the transformer. It makes sure that the transformer oil circulates properly within the main tank. Oil has an important function in the working of the transformer. A transformer that works on Faraday’s Law of electromagnetic induction steps up or down the input voltage.
