A thermal resistance network can be used to approximate the effect of heat sources and heat transfer from that source to the surrounding domain without explicitly having to resolve the source geometry itself.

What is thermal network?

A thermal network is defined by a set of nodes and conductances, and is analogous to an electrical network. Thus, there is a correspondence between potential, flow, resistance, capacitance, etc., between these networks, and basic laws such as Ohm’s law and Kirchoff’s laws can then be applied to balance the network [8].

What causes thermal resistance?

The limited number and size of the contact spots results in an actual contact area which is significantly smaller than the apparent contact area. This limited contact area causes a thermal resistance, the contact resistance or thermal contact resistance.

What is the use of thermal resistance?

We can use thermal resistance to estimate how hot a particular part might get under various loads based on how easily the heat is able to be transfered from one place to another. For electronics the heat starts at the source, such as a semiconductor junction, and spreads to be eventually dissipated to ambient air.

How do you add thermal resistance?

Resistance increases by increasing the thickness of the material, and decreasing its area and thermal conductivity.

How can thermal resistance be minimized?

By applying a thermally conducting liquid on the surfaces before they are pressed against each other By replacing the air at the interface by a better conducting gas such as helium or hydrogen By decreasing the interface pressure By inserting a soft metallic foil such as tin, silver, copper, nickel, or.

Is higher R-value better?

R-value measures how well building insulation can prevent the flow of heat into and out of the home. Higher R-value means greater insulation performance, and thus more savings on your next heating and cooling bill.

How do you find the equivalent thermal resistance?

The thermal resistance of a body is defined as the ratio of temperature difference to the heat current R=ΔTdQ/dt=xKA.

What is a therthermal resistance network?

Thermal resistance networks have a similar functionality to electrical resistance networks used in electrical engineering and allow for easy calculation of the total thermal resistance in a system whether it is composed of resistances in series, parallel or both.

Is thermal resistance in series or parallel?

In industrial heat transfer problems thermal resistance is often in both series and parallel.

What is a thermal resistance circuit?

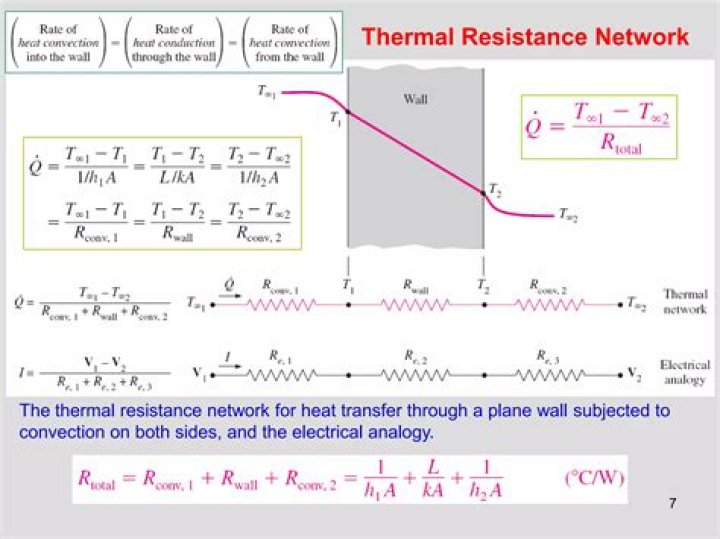

The concept of a thermal resistance circuit allows ready analysis of problems such as a composite slab (composite planar heat transfer surface). In the composite slab shown in Figure 16.6, the heat flux is constant with .

How to calculate the resistance to heat transfer via convection?

The resistance to heat transfer via convection may be calculated by the following equation. displaystyle R_ {text {conv}} = frac {1} {hA} Rconv = hA1 In order to calculate the convective resistance the heat transfer coefficient, h must first be determined.
