What is the wavelength of a helium-neon laser?
Robert Bradley 633 nm
Helium-neon (He-Ne) lasers are widely used for interferometry because they are inexpensive and provide a continuous, visible output. They operate normally at a wavelength of 633 nm, but modified versions are available with useful outputs at other visible and infrared wavelengths.
What is the output in wavelength of helium-neon laser Mcq?
Explanation: The helium-neon laser operates at a wavelength of 632.8 nanometers (nm), in the red portion of the visible spectrum. It is the most widely used gas laser.

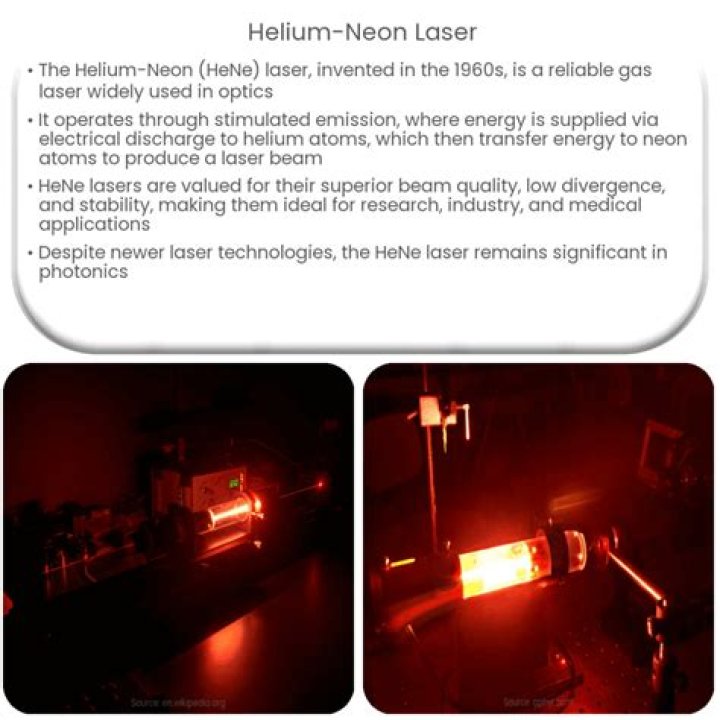

What is helium neon gas laser?
A helium–neon laser or He-Ne laser, is a type of gas laser whose gain medium consists of a mixture of 10:1 ratio of helium and neon at a total pressure of about 1 torr inside of a small electrical discharge.
What is the wavelength of helium?
706.5188 nm
Standard Spectral Lines
| Wavelength | Color | Element |
|---|---|---|
| 656.2725 nm | red | hydrogen |
| 706.5188 nm | red | helium |
| 852.11 nm | infrared | cesium |
| 1013.98 nm | infrared | mercury |
What is principle of helium neon laser?
It has continuous power outputs ranging from less than 1 mW to over 100 mW and has a lifetime of 50,000 h for some commercial units. The excitation mechanism involves electrons colliding with helium atoms to produce helium metastable atoms, which then transfer their energy to neon laser levels.
What is the principle used to find the wavelength of laser?
The energy, E, of a photon is determined by its frequency, , and Planck’s constant, h. The difference in energy levels across which an excited electron drops determines the wavelength of the emitted light….
| LASER TYPE | WAVELENGTH (Nanometers) |
|---|---|
| Carbon Dioxide | 10600 |
What is three level pumping scheme?
Three Level Pumping Scheme “Pumping” is done to achieve the condition of inversion. In the three-level lasers. The three levels in an atom such that E3>E2>E1 , Incident radiation frequency v is used to raise atoms from the level 1(ground state) to level 3(excited state) .
What is the percentage of helium in helium-neon laser?
II THE LASING MECHANISM A He-Ne laser consists of a hollow tube filled with 90 percent He and 10 percent Ne gases and fitted with inward-facing mirrors at the ends of the cavity. The combined pressure of the two gases is approximately 1 Torr (1/760 atmospheres).
What determines the wavelength of a laser?
The wavelength of a laser mainly depends on energy gaps between different electronic, vibrational and rotational states of gain medium. And this energy gap is the equivalent of radiation wavelength. Small gap transitions yield larger wavelength radiation and vice versa.
What are helium neon lasers used for?
Helium–neon lasers, particularly the standard devices emitting at 632.8 nm, are often used for alignment and in interferometers. They compete with laser diodes, which are more compact and efficient, but have less convenient beam profiles.
What is the spectrum of helium?
First spectrum is hydrogen, typical of a hydrogen spectrum tube. Second spectrum is helium, typical of a helium spectrum tube. Third spectrum is lithium, as typically from a flame or an electric arc. Fourth spectrum is neon. Fifth spectrum is low pressure sodium, but with secondary lines exaggerated.
What is a neon laser?
Jump to navigation Jump to search. A helium–neon laser or HeNe laser, is a type of gas laser whose gain medium consists of a mixture of 85% helium and 15% neon inside of a small electrical discharge. The best-known and most widely used HeNe laser operates at a wavelength of 632.8 nm, in the red part of the visible spectrum.
