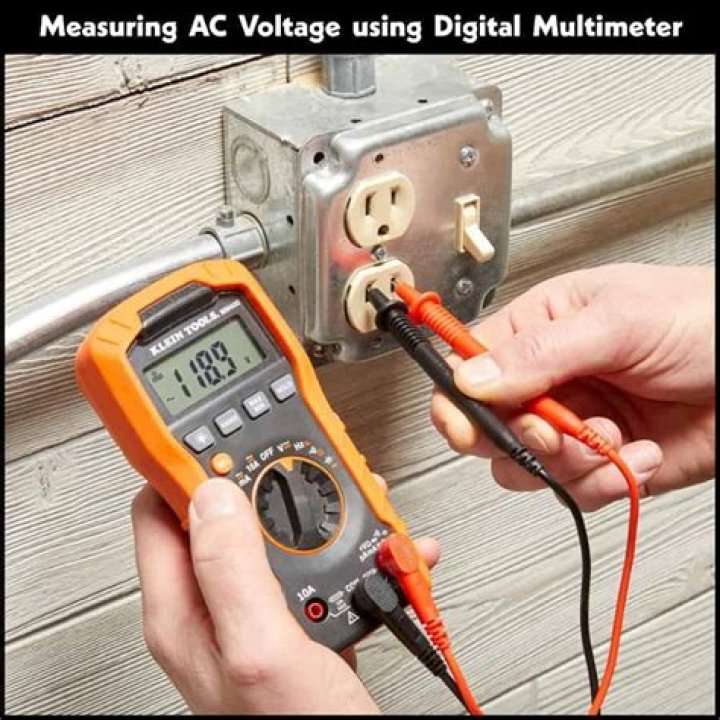

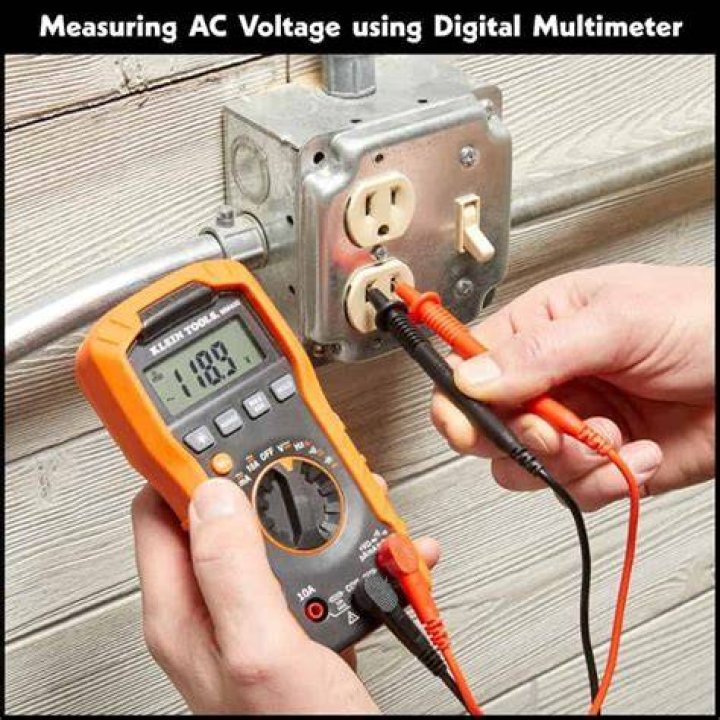

Multimeters are generally not autoranging. You have to set the multimeter to a range that it can measure. For example, 2V measures voltages up to 2 volts, and 20V measures voltages up to 20 volts. So if you’ve measuring a 12V battery, use the 20V setting.

How do I test if my multimeter is working?

Set your multimeter to the lowest setting for resistance (the word “ohms” or an “Ω” symbol can also denote resistance). Touch the red probe to the black probe. Check the display to make sure that it reads “0,” as there should not be any resistance between the two probes. Find a resistor of known value.

How do I check if my multimeter is calibrated?

How to Calibrate a Digital Multimeter

1. Set the multimeter to the highest resistance range by turning the dial to the highest “ohm” setting.
2. Touch the test probes of your digital multimeter together.
3. Press the calibration knob until the display reads “0” on the digital multimeter if you don’t see “0 ohms” initially.

How does the CEN-Tech 95683 measure current flow?

The Cen-Tech 95683 is a special case. It comes equipped with a clamping jaw that allows the device to measure current flow up to 1,000 amps in a live conductor. It’s always a good idea to consult your Cen-Tech digital multimeter manual. It contains detailed instructions that can’t be covered in a short expository.

How does the CEN-tech upgrade digital multimeter work?

Fuse Protection Fuse is another crucial component of the Cen-Tech upgraded digital multimeter. We know a fuse is set to break when a certain level of current is exceeded, and that is what a fuse does in the Cen-Tech digital multimeter. The fuse will also cut at an instantaneous high current, thereby protecting the Cen-Tech from damage.

What type of battery does Cen-Tech use?

Most Cen-Tech uses a single 9V battery, but refer to the User Manual for clarity. Use the proper settings, techniques, terminals, and range for testing and do not use the multimeter to test current, or Voltage higher than its limit. Only use accessories that were intended for the multimeter.

How many CEN-Tech manuals are in all-Guides Database?

All-Guides Database contains 67 CEN-TECH Manuals (62 Devices) for Free Downloading (PDF).
