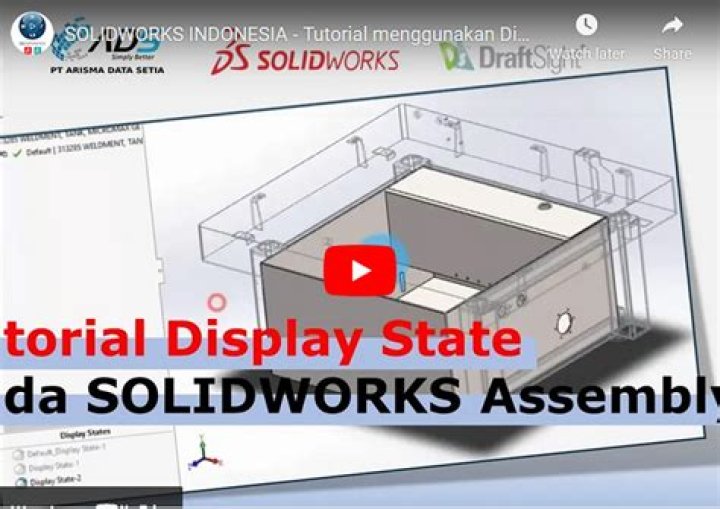

SOLIDWORKS Display states are used to showcase a part/component differently within one model/assembly. In Display States we can modify the display of a part/assembly by changing; the Transparency, Appearance, Display Mode, and Hiding bodies/components.

How do I change the display state in SolidWorks?

Right-click anywhere in the Display Pane, select Activate Display State, and select a display state. Right-click Show Display Pane and select a display state. Select a display state.

What is the difference between a display state and a configuration in Solidworks?

Configurations vs Display States Configurations allow the change of physical properties of a model between different versions. These changes can be dimensional changes, suppressed features or even alternate hole wizard sizes, whereas a Display State allows for the appearance of the part to be modified.

How do I connect display states to configurations?

To link a display state to the configuration, right-click it and click Properties. In the Display State Properties PropertyManager, under Advanced Options, select Link display states to configurations.

What is the difference between a configuration and a derived configuration in Solidworks?

In SOLIDWORKS, you can create child configurations, resulting in a parent-child relationship within configurations. Such child configurations are called as derived configurations. A configuration can have multiple derived (child) configurations either in a parallel or nested hierarchy.

Can you create a derived configuration from an existing configuration?

Creating Derived Configuration To manually create a derived configuration right-click a configuration and select “Add Derived Configuration”. Then set options in the PropertyManager and press OK. The derived configuration is added to the ConfigurationManager underneath its parent.

How to change display state in SolidWorks?

How to Change Display State in SOLIDWORKS 1 Right-click a display state and click Properties . 2 In the Display State Properties PropertyManager, under Advanced Options , select or clear Link display states to configurations . 3 Click . See More….

Why might someone use display States in drawings in SolidWorks?

Why might someone want to use display states in drawings in SOLIDWORKS? One good example would be when the user wants to illustrate an assembly view in such a way that makes one or more components stand out from the others in the assembly. This can be accomplished by employing a display state that adds color to the component (s) of interest.

How do I change the display state of a part?

Add display states to the part. Rename display states. Change the active display state. Remove all or selected appearances from the part. You can also control the display state mode by linking display states to configurations in the ConfigurationManager.

What is the use of display States?

The physical features of the part are the same from one display state to another. For example, you might use display states to: Hide some bodies in a multibody part while you work on others.
