[′stərn ‚lā·ər] (physical chemistry) One of two electrically charged layers of electrolyte ions, the layer of ions immediately adjacent to the surface, in the neighborhood of a negatively charged surface.

What do you mean by zeta potential?

The zeta potential is a measure of the difference in potential between the bulk fluid in which a particle is dispersed and the layer of fluid containing the oppositely charged ions that is associated with the nanoparticle surface.

What is the surface potential?

Surface potential is the electrical potential between the surface of the particle and any point in the suspending liquid. Basically, the higher the absolute value of the zeta potential, the more stable the dispersion (particles are repelling each other).

What is Stern model?

The existing Stern model is used for several decades to describe the phenomena of electric double layer of electrode/electrolyte interface. The protein molecules form chemical coupling and chemical adsorption along with classical ionic bonding with gold electrodes.

What is Helmholtz model?

Helmholtz considered the double layer consisting of two oppositely charged layers at a fixed distance a part. The charge density on the two sheets are equal in magnitude but opposite in sign exactly as in parallel plate condenser. Hence, the Helmholtz–Perrin model is also called parallel plate condenser model.

What is double layer colloid?

An electric double layer is a phenomenon that plays a fundamental role in the mechanism of the electrostatic stabilization of colloids. Colloidal particles gain negative electric charge when negatively charged ions of the dispersion medium are adsorbed on the particle surface.

Why is it called zeta potential?

Zeta potential is a scientific term for electrokinetic potential in colloidal dispersions. In prior literature, it is usually denoted using the Greek letter zeta, Ζ, hence it has obtained the name zeta potential as Ζ-potential.

Are surfaces negatively charged?

Surface charge practically always appears on the particle surface when it is placed into a fluid. Most fluids contain ions, positive (cations) and negative (anions). These ions interact with the object surface. Dissociation of the surface chemical group is another possible mechanism leading to surface charge.

What is Helmholtz layer?

Helmholtz double layer (HDL) refers to the structural representation of the accumulation of electrical charges present at the boundary of an electrode and electrolyte when they are in contact with each other. HDL is most readily identifiable in fluid-based mixture systems, such as paints used for corrosion prevention.

What is Electrocapillary curve?

Electrocapillary curves (surface tension γ as a function of the electrode potential E) for a series of room-temperature ionic liquids (RTILs) were measured using a mercury dropping electrode with the drop-weight (drop-volume) technique. The potential of zero charge is within a relatively narrow range.

What is the difference between Stern potential and electric surface potential?

The electric potential on the external boundary of the Stern layer versus the bulk electrolyte is referred to as Stern potential. Electric potential difference between the fluid bulk and the surface is called the electric surface potential.

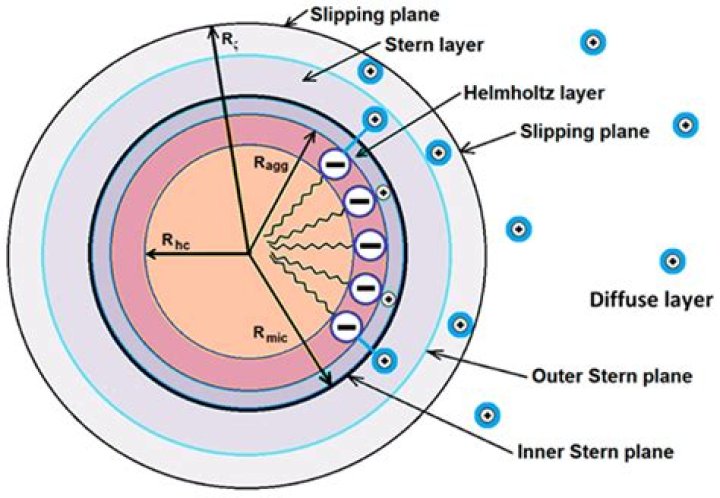

What is the Stern layer made of?

The Stern Layer is immobile relative to the surface and is comprised of a layer of ions charged oppositely to the surface which attach to the surface. The potential difference between the out boundary of the Stern layer and the bulk solution is referred to as the Stern potential.

What is Stern layer of ionic solution?

Stern layer. The Stern Layer is the first (internal) layer of the electric double layer, which forms at a charged surface in an ionic solution. The Stern Layer is immobile relative to the surface and is comprised of a layer of ions charged oppositely to the surface which attach to the surface.

What is the relationship between zeta potential and surface potential?

The relationship between zeta potential and surface potential depends on the level of ions in the solution.The figure above represents the change in charge density through the diffuse layer. One shows considered to be rigidly attached to the colloid, while the diffuse layer is not.
