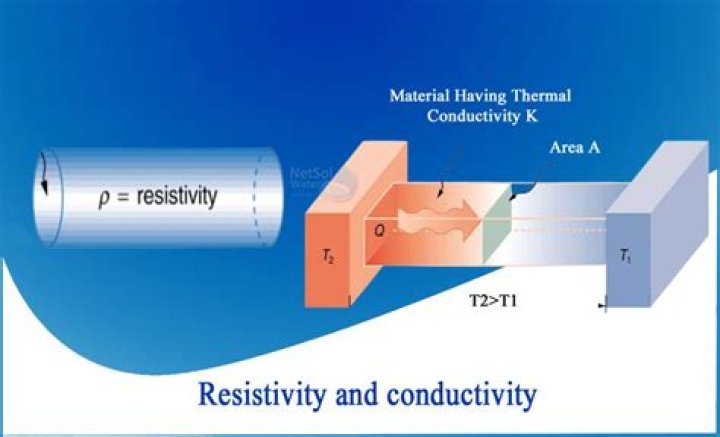

Conductivity vs Resistivity Since conductivity is the measure of how easily electricity flows, electrical resistivity measures how much a material resists the flow of electricity.

What is meant by resistivity and conductivity?

Electrical resistivity is a property of a material that tells you how much it resists the flow of electric current, while conductivity quantifies how easily current flows.

How is conductivity and resistivity measured?

Conductivity and resistivity are both measures of the ability of a fluid to conduct electrical current. Conductivity is simply the reciprocal of resistivity: conductivity = 1/resistivity (See Table 1).

What is the formula for resistivity?

Resistivity, commonly symbolized by the Greek letter rho, ρ, is quantitatively equal to the resistance R of a specimen such as a wire, multiplied by its cross-sectional area A, and divided by its length l; ρ = RA/l. The unit of resistance is the ohm.

What is the relation between electric conductance and electric resistance?

Conductance is the opposite of resistance: the measure of how easy it is for electric current to flow through something. Conductance is symbolized with the letter “G” and is measured in units of mhos or Siemens. Mathematically, conductance equals the reciprocal of resistance: G = 1/R.

What is resistivity and conductivity class 12?

Resistivity and conductivity Unit of resistivity is ohm-meter. Thus from equation (12) ,electric resistivity can also be defined as the ratio of electric field intensity at any point in the conductor and the current density at that point.

What is resistivity with example?

Thus the higher the resistivity value of ρ the more resistance and vice versa. For example, the resistivity of a good conductor such as copper is on the order of 1.72 x 10-8 ohm metre (or 17.2 nΩm), whereas the resistivity of a poor conductor (insulator) such as air can be well over 1.5 x 1014 or 150 trillion Ωm.

What is difference between resistivity and conductivity?

A low resistivity indicates a material that readily allows electric current. Resistivity is commonly represented by the Greek letter ρ (rho). Electrical conductivity or specific conductance is the reciprocal of electrical resistivity. It represents a material’s ability to conduct electric current.

What is resistivity example?

Electrical Resistivity For example, the resistivity of a good conductor such as copper is on the order of 1.72 x 10-8 ohm metre (or 17.2 nΩm), whereas the resistivity of a poor conductor (insulator) such as air can be well over 1.5 x 1014 or 150 trillion Ωm.

What is the conversion of resistance to conductivity?

Resistivity Units Conversion 1 ohm/2 x 10-5 = 1/conductivity = 1/2 x 10-5 ohm

What is the relationship between temperature and resistivity?

When temperature increases, the conductivity of metals usually decreases, while the conductivity of semiconductors increases. This of course assumes that the material is homogenous, which is not always the case. You can calculate resistivity using the following equation

What is electrical resistivity and why is it important?

Electrical resistivity, represented by the Greek letter ρ (rho), is a measure of how strongly a material opposes the flow of electric current. The lower the resistivity, the more readily the material permits the flow of electric charge.

What is the meaning of conductivity in Electrical Engineering?

Electrical conductivity or specific conductance is the reciprocal of electrical resistivity. It represents a material’s ability to conduct electric current. It is commonly signified by the Greek letter σ , but κ (especially in electrical engineering) and γ are sometimes used.
