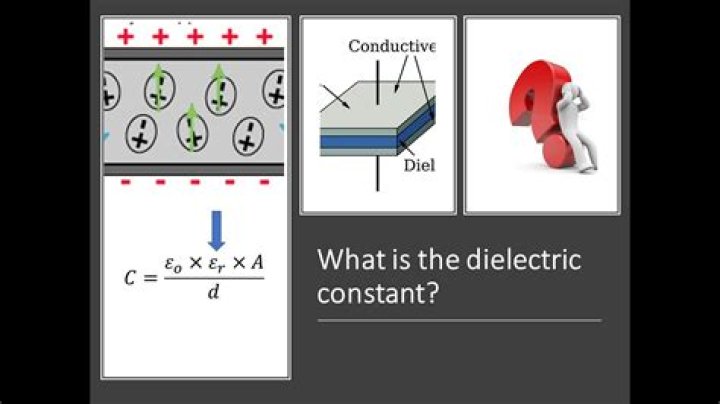

Dielectric constant (ϵr) is defined as the ratio of the electric permeability of the material to the electric permeability of free space (i.e., vacuum) and its value can derived from a simplified capacitor model.

Is dielectric constant high?

The highest dielectric constant is Calcium Copper Titanate.

Which has highest dielectric constant value?

Calcium Copper Titanate
Calcium Copper Titanate has the highest dielectric constant.

What is the use of high dielectric constant?

High dielectric constant (k) insulator compositions (as high as k = 1,200) are used to make capacitors, and low k insulator compositions (k =9 to 15) are used to provide insulation between conductors.

What is high dielectric constant of water?

Water has a high dielectric constant because the water molecule have dipole moment and so it can be polarized. Under a given electric field, water tends to polarize strongly, nearly canceling out the effect of the field.

What do you mean by dielectric constant and dielectric strength?

The key difference between dielectric constant and dielectric strength is that dielectric constant is the ratio between the capacitance of an insulating material and the capacitance of vacuum whereas dielectric strength is the electrical strength of an insulating material.

Why water is a high dielectric constant?

What is meant by high k dielectrics give examples?

The term high-κ dielectric refers to a material with a high dielectric constant (κ, kappa), as compared to silicon dioxide. High-κ dielectrics are used in semiconductor manufacturing processes where they are usually used to replace a silicon dioxide gate dielectric or another dielectric layer of a device.

What increases dielectric constant?

Applying voltage to the electrode plates of a capacitor causes an electric field in the non-conductive dielectric material. An increase in plate area and dielectric constant results in an increase in capacitance while an increase in the separation distance between the plates results in a decrease in capacitance.

Why water has a high dielectric constant?

What is high k materials?

“High-k” stands for high dielectric constant, a measure of how much charge a material can hold. Air is the reference point for this constant and has a “k” of 1.0. Silicon dioxide (the “old-fashioned” gate material) has a “k” of 3.9.

Which materials have the highest dielectric constant?

Polyester Of the film dielectrics listed the most common is polyester. This has the highest dielectric constant and so is capable of the highest capacitance per unit volume.

What does it mean to have a high capacitance?

What does a higher capacitance mean? A large capacitance means that (for a given. of AC driving voltage) the capacitor will spend more of its time in a charging or discharging mode. A small capacitance means that the capacitor will charge up quickly and spend most of the cycle behaving like an open circuit and so not passing current.

How to determine dielectric constant?

The dielectric constant can be calculated using: ε = Cs / Cv, where Cs is the capacitance with the specimen as the dielectric, and Cv is the capacitance with a vacuum as the dielectric.

How do you measure dielectric constant?

That means that to get the dielectric constant, simply measure the capacitor’s capacitance with the material in place (Cm), and then measure its capacitance again but without the material i.e. with air instead (Ca).
