On DC and most AC motors the purpose of the commutator is to insure that the current flowing through the rotor windings is always in the same direction, and the proper coil on the rotor is energized in respect to the field coils.

Is a commutator an inverter?

The function of the Commutator Segment It is a device that converts either AC to DC or DC to AC I,e it can act as both “Rectifier” or as an “Inverter” depending upon the requirement.

What are the applications of commutator?

The applications of commutators include DC (direct current) machines like DC generators, numerous DC motors, as well as universal motors. In a DC motor, the commutator provides electric current to the windings.

What is commutator and its working?

A commutator is a rotary electrical switch in certain types of electric motors and electrical generators that periodically reverses the current direction between the rotor and the external circuit. By reversing the current direction in the rotating windings each half turn, a steady rotating force (torque) is produced.

What is the other name of commutator?

commutator; reverser; current-reverser; switch.

Can commutator convert AC to DC?

Function of commutator: To keep the torque on a DC motor from reversing every time the coil moves through the plane perpendicular to the magnetic field, a split-ring device called a commutator is used to reverse the current at that point. It doesn’t convert to ac.

Why is copper used for commutators?

The brushes in brushed commutators are usually made of either copper or carbon. Carbon brushes wear more evenly, cause less sparking, and do less damage to the conductive metal segments. Copper brushes are better suited for very low voltage and high current, however.

Why are commutators made of copper?

Is slip ring a commutator?

A commutator is a specialized slip ring typically used on Direct Current motors and electrical generators to transfer electrical power between the stationary housing and the rotating armature with the added purpose of reversing the electrical current direction.

Is commutator present in AC generator?

AC generator does not have commutators. DC generators have commutators to make the current flow in one direction only. AC generators have slip-rings.

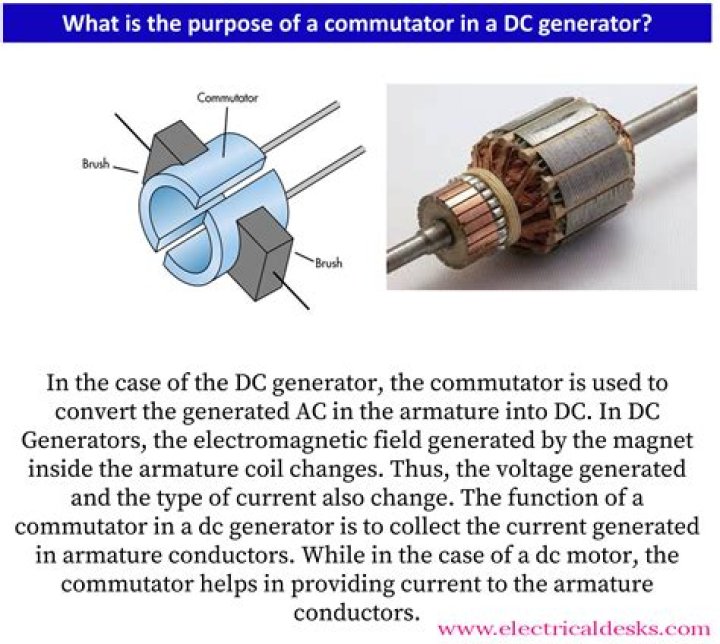

How does the commutator work in a generator?

In a generator the commutator picks off the current generated in the windings, reversing the direction of the current with each half turn, serving as a mechanical rectifier to convert the alternating current from the windings to unidirectional direct current in the external load circuit.

How does the commutator reverse the flow of current in winding?

As the shaft rotates, the commutator reverses the flow of current in a winding. For a single armature winding, when the shaft has made one-half complete turn, the winding is now connected so that current flows through it in the opposite of the initial direction.

Why are commutated motors being replaced by AC motors?

Commutators are relatively inefficient, and also require periodic maintenance such as brush replacement. Therefore, commutated machines are declining in use, being replaced by alternating current (AC) machines, and in recent years by brushless DC motors which use semiconductor switches.

What is the formula for commutator?

Commutator Formulas. Shervin Fatehi September 20, 2006. 1 Introduction. A commutator is defined as1. [A,ˆ Bˆ] = AˆBˆ −BˆAˆ (1) where Aˆ and Bˆ are operators and the entire thing is implicitly acting on some arbitrary function.
