What is the formula of balanced Wheatstone bridge?
Daniel Lopez Wheatstone bridge circuit diagram. The unknown resistance Rx is to be measured; resistances R1, R2 and R3 are known, where R2 is adjustable. When the measured voltage VG is 0, both legs have equal voltage ratios: R2/R1 = Rx/R3 and Rx= R3R2/R1.
How do you calculate the voltage of a Wheatstone bridge?
The Wheatstone Bridge
- I = V ÷ R = 12V ÷ (10Ω + 20Ω) = 0.4A.
- VR2 = I × R2 = 0.4A × 20Ω = 8 volts.
- VR4 = 0.4A × 10Ω = 4 volts.
How do you calculate bridge in balance?
In normal condition, the bridge remains in the unbalanced condition, i.e. the current flow through the galvanometer. When zero current passes through the galvanometer, then the bridge is said to be in balanced condition. This can be done by adjusting the known resistance P, Q and the variable resistance S.
What is potentiometer principle?
The principle of a potentiometer is that the potential dropped across a segment of a wire of uniform cross-section carrying a constant current is directly proportional to its length. The potentiometer is a simple device used to measure the electrical potentials (or compare the e.m.f of a cell).
What is unbalanced Wheatstone bridge?
Unbalanced condition If the value of the resistors R1, R2 and R3 are fixed, then the value of the unknown resistor RX has to be found out with the help of Kirchhoff’s voltage and current laws. For this, the bridge circuit will produce a voltage as well as a current as the circuit will not be balanced.
How do you balance an unbalanced Wheatstone bridge?
Principle of Wheatstone Bridge The Wheatstone bridge principle states that if four resistances P, Q, R, and S are arranged to form a bridge with a cell and key between A and C, and a galvanometer between B and D then the bridge is said to be balanced when the galvanometer shows a zero deflection.
What is the value of current when bridge is balanced?
When no current flows through the galvanometer it is known as the balanced condition of the galvanometer. The Wheatstone’s bridge will be in the balanced condition when the current through the galvanometer is zero. Current will divide in magnitude to I1&I2 to go through resistors P and R.
What is the balanced condition of bridge?
The bridge is said to be in a balanced condition when no current flows through the galvanometer. This condition can be achieved by adjusting the known resistance and variable resistance.

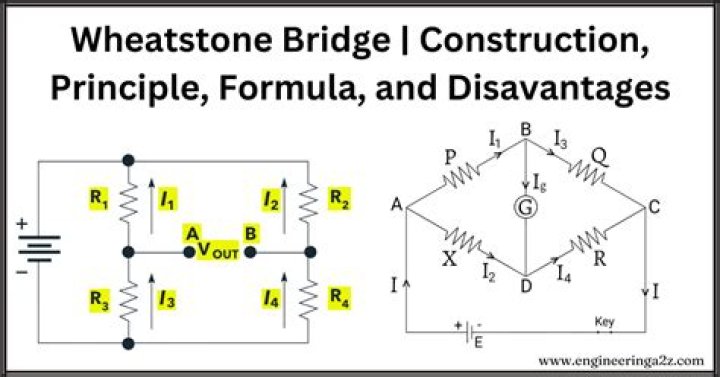

What is Wheatstone bridge with diagram?
The wheatstone bridge is an arrangement of four resistors R1,R2,R3,R4. Across one point of diagonally opposite points, a source is connected. This is called the battery arm. Between the other two vertices, a galvanometer is connected.
What is a Wheatstone bridge used for?
A Wheatstone bridge is an electrical circuit used to measure an unknown electrical resistance by balancing two legs of a bridge circuit, one leg of which includes the unknown component.
What is Wheatstone meter bridge?
Wheatstone Bridge Application The Wheatstone bridge is used for the precise measurement of low resistance. Wheatstone bridge along with operational amplifier is used to measure physical parameters such as temperature, light, and strain. Quantities such as impedance, inductance, and capacitance can be measured using variations on the Wheatstone bridge.
What is the idea of a balanced bridge circuit?
Thinking on these primary questions, I finally figured out that the simple basic idea of a balanced bridge circuit is to connect two equal voltage sources by a third, passive element. The voltage sources are grounded while the coupling element is “floating”.
