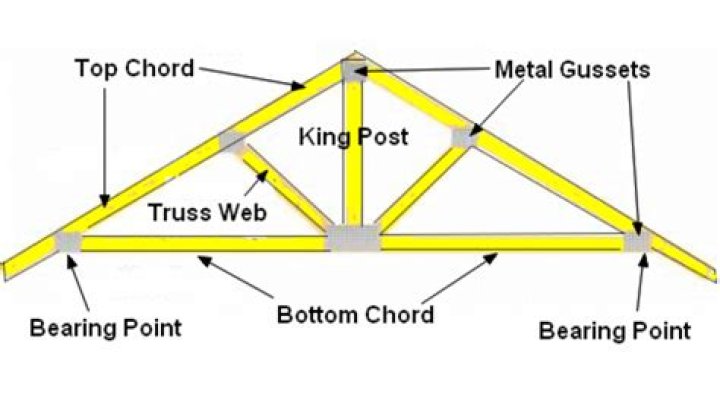

King Post Truss It can be used for spans upto 8m.

Which software is best for truss design?

TRUSS4 is a complex software solution for manufacturers of timber trusses with punched metal fasteners. TRUSS4 is able to assist in all parts of the truss production from structure modeling and structural analyses, economic calculations to manufacturing documentation and production control.

How much does a roof truss cost?

Roof Truss Prices For a 2,000-square-foot home, roof truss installation typically costs between $7,200 and $12,000. You’ll spend anywhere from $1.50 to $4.50 per square foot of building area for materials alone, or between $35 and $150 per truss, though extremely long and complex types can reach $400 each.

What is a roof truss calculator and do you need one?

If you’re thinking about replacing your roof with a new one, you will need a roof truss calculator. This online truss calculator will determine the all-in cost of your truss based on key inputs related to the pitch, width and overhang of your roof.

How do you do a static 2D truss analysis?

Simply add nodes, members and supports to set up your model, apply up to 5-point loads (distributed loads can be added in full version), then click solve to run the static 2D truss analysis. It is particularly useful as a steel bridge truss design software or roof truss calculator.

What are the requirements for a truss construction drawing?

Wood truss construction drawings shall be prepared by a registered and licensed engineer as per IRC 2012 Sec. R802.10.2 and designed according to the minimum requirements of ANSI/TPI 1-2007. The truss designs and calculations provided by this online tool are for educational and illustrative purposes only.

What is a roof rafter calculator used for?

It has a wide range of applications including being used as a wood truss calculator, roof truss calculator, roof rafter calculator, scissor truss calculator or roof framing. Trusses are typically modelled in triangular shapes built up of diagonal members, vertical members and horizontal members. How to use this Rafter Calculator?
