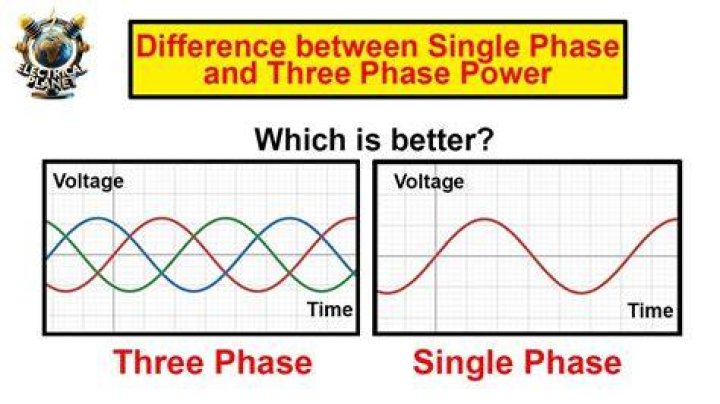

What is the difference between single-phase and three-phase power supplies? Single-phase power is a two-wire alternating current (ac) power circuit. Three-phase power is a three-wire ac power circuit with each phase ac signal 120 electrical degrees apart.

Does AC require 3 phase?

Note: A lot of people have a misconception that Air Conditioners require a three-phase connection. Which actually is not true because all ACs have motors designed to run on single-phase. Only if you have more than 3 ACs that are all in use together you may need a three-phase connection.

Is 208 a single phase?

In the USA, 208V single phase and three phase voltage is one of the standard voltage levels used for commercial applications.

How to calculate 3 phase power?

How to Calculate 3 Phase Power Single-Phase vs. Three-Phase Power. Three-Phase Power Formula. The most important three-phase power equations relate power (​ P ​, in watts) to current (​ I ​, in amps), and depend on the voltage (​ V Converting kW to Amps. Converting Amps to kW.

What are the 3 phase voltages in the USA?

A 3 Phase-Wye connected system consists of three hot lines, or phases, commonly referred to as X, Y, Z, a neutral, and a ground wire for a total of five wires in a power distribution cable. In North America the most common 3 Phase-Y voltages are either 120/208 VAC or 277/480 VAC, while internationally the most common 3 Phase voltage is 230/400 VAC.

How do you calculate three phase power?

Calculate three-phase motor power consumption by multiplying amps by volts by the square root of three (W = AV(sqrt 3). For example, if the motor is drawing 30 amps at 250 volts, you have 30 x 250 x sqrt 3 (about 1.73) = 12,975 watts).

What is single phase and three phase?

The difference between three phase and single phase is primarily in the voltage that is received through each type of wire. There is no such thing as two-phase power, which is a surprise to some people. Single-phase power is commonly called “split-phase.”.
