This week we’ll conclude with condenser microphones. The difference between the two is that the DC-biased condenser requires an external power supply to provide polarizing voltage while the electret condenser uses a pre-polarized diaphragm or back plate. Most condenser microphones used today are electret.

Do electret condenser mics need phantom power?

Phantom Power While the electret condenser microphone doesn’t need a power supply to provide polarizing voltage, an FET impedance matching circuit inside the microphone does require some power. This may be supplied by a small low-voltage internal battery or by an external “phantom” supply.

Are all condenser mics electret?

Probably ninety-five percent of the condenser microphones on the market are the electret type. The electret has a charged backplate that is created when we manufacture the microphone. A true condenser, on the other hand, continuously requires an external charge.

What is electret condenser?

Electret condenser microphones are used to convert sound into an electrical signal and are used in a wide variety of consumer electronic products, including mobile phones, GPS devices, and speech recognition equipment.

How do electret mics work?

The working principle of an electret condenser microphone is that the diaphragm acts as one plate of a capacitor. Vibrations produce changes in the distance between the diaphragm and the back plate. This change in voltage is amplified by the FET and the audio signal appears at the output, after a dc-blocking capacitor.

How do electret filters work?

Modern electret filters consist of electrically charged polymer fibers. The electrical charges augment the mechanical removal processes and improve collection efficiency for submicrometer particles. Charged airborne particles are attracted to opposite charges on the media by coulombic attraction.

Why do condenser microphones need Phantom Power?

Put simply, condenser microphones have active electronics that need an external power source, while dynamic mics are passive and therefore do not need phantom power. Because of the way condenser mics work, their output is very high impedance, and therefore requires a powered circuit to reduce that impedance.

What would you use a condenser microphone for?

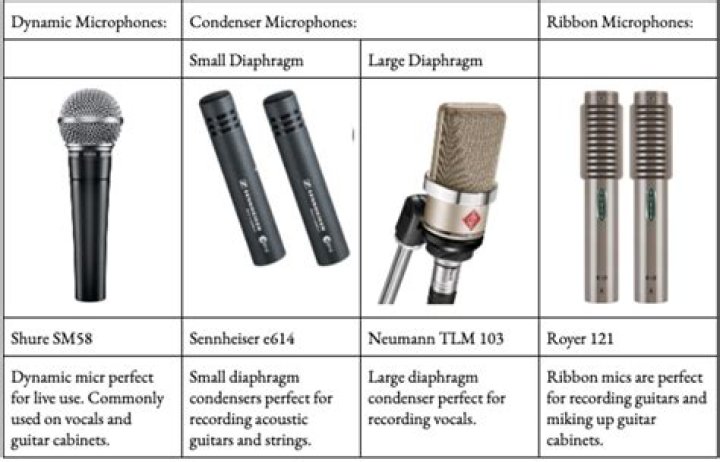

Large diaphragm condenser mics are used for recording vocals and thin pencil microphones can be used for cymbals and acoustic instruments. Condenser mics require phantom power, provided from XLR microphone preamps, through XLR cables. A LDM condenser microphone is almost always used for vocal recordings in a studio.

What is an example of an electret?

An electret material possesses a permanent electrical dipole moment. When used in a condenser microphone, it provides the polarization voltage between the membrane and backplate in place of the external supply voltage. Electret materials are generally high-resistivity polymers, a prime example being PTFE Teflon.

Do I need a condenser mic?

If you’re recording a podcast, voice over work, or streaming a game, you should opt for a condenser mic unless you have no control over background noise. With a little bit of fine-tuning, a condenser will give you the professional, warm sound that you’re looking for.
