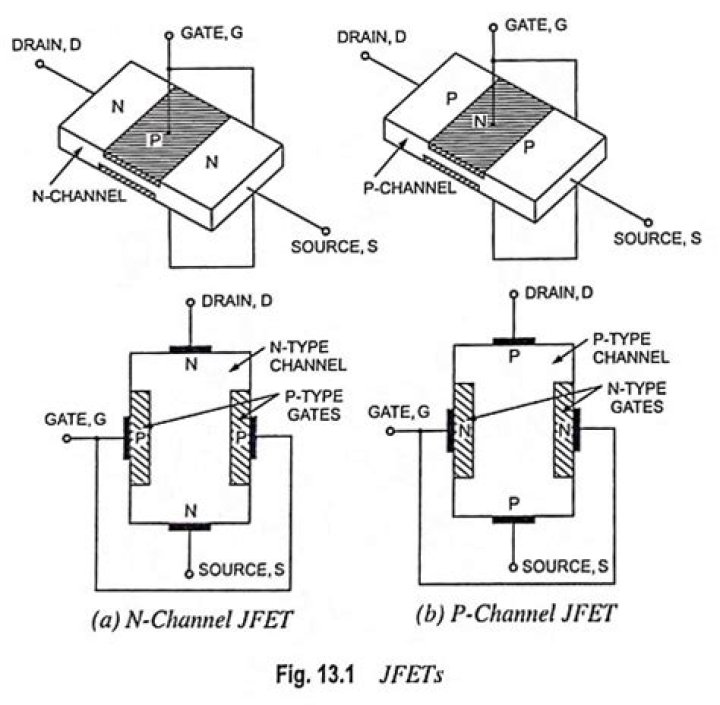

Construction of JFET N – Channel JFET −It consists of an n – type silicon bar forming the conduction channel for the charge carriers. The pn – junction forming diodes are connected internally and a common terminal called GATE is taken out from the p – Region.

How N-channel and P-channel JFET are formed?

In the case of p-channel JFET, the major portion made of the device is made of p-type into which embedded are the two small n-type regions. Thus it has an n-type gate terminal and p-type source and drain, causing the channel to be of p-type where the holes will be the majority charge carriers.

What is JFET explain the working of JFET?

A JFET is a three terminal semiconductor device in which current conduction is by one type of carrier i.e. electrons or holes. The current conduction is controlled by means of an electric field between the gate and the conducting channel of the device. The JFET has high input impedance and low noise level.

How does P-channel Mosfet work?

In a P-channel device the conventional flow of drain current is in the negative direction so a negative gate-source voltage is applied to switch the transistor “ON”. Then when the switch goes LOW, the MOSFET turns “ON” and when the switch goes HIGH the MOSFET turns “OFF”.

What is drain characteristics of JFET?

Drain-Characteristics-of-JFET. Initially when drain-source voltage Vns is zero, there is no attracting potential at the drain, so no current flows inspite of the fact that the channel is fully open. This gives drain current Ip = 0.

How a JFET and Mosfet are constructed?

The MOSFET is similar in construction to the JFET. The thin layer of high resistance insulation prevents electron flow between the gate and the channel material. The high resistance between the gate and channel area makes for a very high impedance input device.

What are the differences between N channel and P-channel JFET?

The device characteristics of n type and p type JFET is similar, the only difference being that in n channel JFET the current is carried by electrons while in p-channel JFET, it is carried by holes.

What is the construction difference between JFET and Mosfet?

Difference between JFET and Mosfet:

What is P-channel Mosfet used for?

P-channel MOSFETs are often used for load switching. The simplicity of P-channel solutions on the high side makes them equally attractive for applications such as Low-Voltage Drives and non-isolated Point of Loads in systems where space is at a premium.

What is a p channel JFET?

In the case of p channel JFET, the channel is formed by a P-type semiconductor bar and too heavily doped n-type regions are formed on the two sides of the p-type bar forming the channel. In FET, current flows through the channel from the left-hand end (called source) to the right-hand end (called a drain ).

What is the basic construction of JFET?

In the above image, we can see the basic construction of a JFET. The N-Channel JFET consists of P-type material in N-type substrate whereas N-type materials are used in the p-type substrate to form a P channel JFET. JFET is constructed using the long channel of semiconductor material.

What are the static characteristics of n channel JFET?

Set of static characteristics of N channel JFET is shown in the figure. When VGS = 0 V, the channel between the gate junction is fully open. When VDS = 0, then no electric field is applied and the majority carrier ( electrons ) are not attracted from the source to the drain. Hence the drain current ID = 0..

What is the difference between n type and P type JFET?

The gate lead is connected to the N-type terminals, while the drain and source leads are connected to either ends of the P-type channel. When no voltage is applied to the gate of a P-Channel JFET, current (holes) flows freely through the central P-channel.
