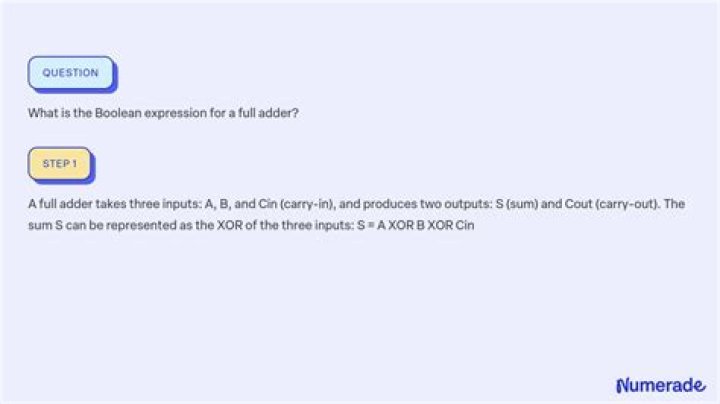

The Boolean equation for the Full Adder is S = (~X*~Y*Z) + (~X*Y*~Z) + (X*~Y*~Z) + (X*Y*Z) where S is the sum of bit values. C = (X*Y) + (X*Z) + (Y*Z). The Full Adder is comprised of two exclusive OR gates, two AND gates, and one OR gate.

What is full adder expression?

Full Adder is the adder which adds three inputs and produces two outputs. The first two inputs are A and B and the third input is an input carry as C-IN. The output carry is designated as C-OUT and the normal output is designated as S which is SUM.

How many half adders are in a 4-bit adder?

So, in the given question to add 4- bit binary numbers requires 1 half adder and 3 full adders.

What does a full adder do?

A full adder circuit is central to most digital circuits that perform addition or subtraction. It is so called because it adds together two binary digits, plus a carry-in digit to produce a sum and carry-out digit.

What is a 4-bit binary number?

With 4 bits, it is possible to create 16 different values. All single-digit hexadecimal numbers can be written with four bits. Binary-coded decimal is a digital encoding method for numbers using decimal notation, with each decimal digit represented by four bits.

How many full adders are needed for 4-bit binary adder?

4 full adders
The circuit consists of 4 full adders since we are performing operation on 4-bit numbers. There is a control line K that holds a binary value of either 0 or 1 which determines that the operation being carried out is addition or subtraction.

What is a full adder?

Full Adder is a combinational logic circuit. It is used for the purpose of adding two single bit numbers with a carry. Thus, full adder has the ability to perform the addition of three bits. Draw K-maps using the above truth table and determine the simplified Boolean expressions- Draw the logic diagram.

How do you find the Boolean equation of a full adder?

The Boolean equations of a full adder are given by: = ABC + AB’C’ + A’B’C + BA’C’

How many full adders are used in an n-bit binary adder-subtractor?

For an n-bit binary adder-subtractor, we use n number of full adders. Lets take two 3 bit numbers A=010 and B=011 and input them in the full adder with both values of control lines. Attention reader! Don’t stop learning now.

How does a serial adder work?

A serial adder uses a sequential technique and may be regarded as a very simple finite state machine. The basic element of the circuit is a full adder which is operated in conjunction with a DFF and a pair of shift registers which have parallel loading and shift right facilities controlled by Ck 1 and Ck 2.
