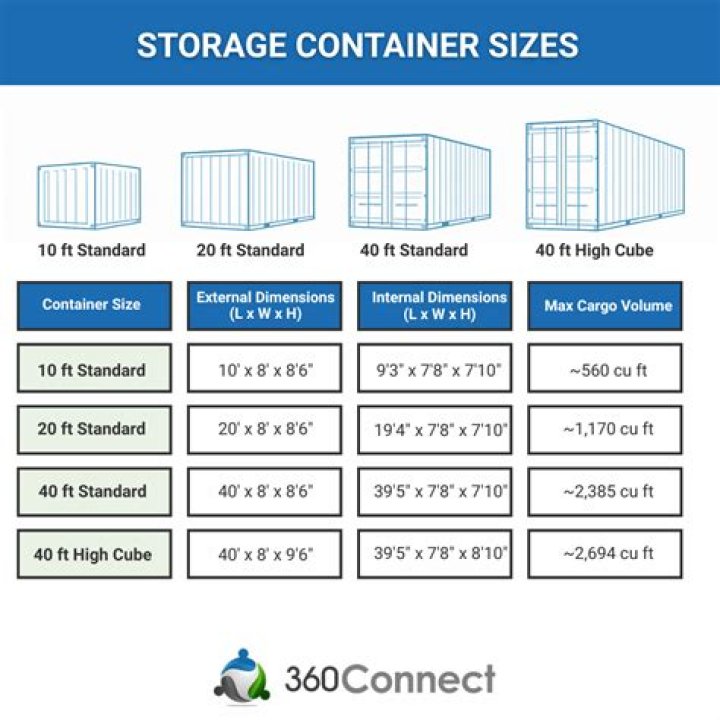

What is standard container size?
David Richardson How big is a Shipping Container? Standard ISO shipping containers are 8ft (2.43m) wide, 8.5ft (2.59m) high and come in two lengths; 20ft (6.06m) and 40ft (12.2m). Extra tall shipping containers called high-cube containers are available at 9.5ft (2.89m) high.
What is 40 RA container?
Dimensions of the 40-foot container The dimensions of a 40-foot container are: Exterior Dimensions (in feet): 40′ long x 8′ wide x 8′ 6” high. Exterior Dimensions (in meters): 12.19m long x 2.44m wide x 2.59m high. Interior Dimensions (in feet): 39′ 6” long x 7′ 9” wide x 7′ 10” high.
How many CBM is a 40 HQ container?
Container types and measurements
| 20 ft | 40 ft High Cube | |
|---|---|---|
| Cubic Capacity | ||
| Cubic meters Cubic feet | 27.9 cbm 986 cu. ft | 64.0 cbm 2,359 cu. ft. |
| Payload | ||
| kg lbs | 27,550 kg 53,460 Ibs | 29,500 kg 65,034 Ibs |
What is the CBM of a 45 foot container?
Sea Container Specification
| 45 ft Dry High Cube Freight Aluminium Containers | ||
|---|---|---|
| Tare Weight : 3,900 kg | Capacity Cubic: 85.7 cbm | |
| Specifications | Length | Width |
| Outer Dimensions | 45′ | 8′ |
| Inner Dimensions | 13,582 mm | 2,347 mm |
What is a standardized container?
Standard containers are also known as general purpose containers. They are closed containers, i.e. they are closed on all sides. A distinction may be drawn between the following types of standard container: Standard containers with doors at one or both end(s)
What is a 20 ft GP container?
20’GP Shipping Container (General Purpose) It is known as a ‘Twenty-Footer’ to signify the overall length of 20 feet. Their design allows multi-modal transport seamlessly between trucks, trailers, port handling equipment, shipping vessels and railheads.
What is difference between 40 HQ and 40 DC?
The primary difference between a 40ft Standard height container and a 40ft High Cube Container is the difference in height of exactly one foot. This additional height gives the 40ft High Cube container an extra 344 cu ft of storage capacity. All the other specifications remain the same in terms of the width and length.
What does HQ mean in shipping?
High Cube
2) High Cube (HC or HQ) Container A High Cube container is a type of container that is 1 foot more in height than a standard 40′ container..
What is HQ in shipping?
Shipping Container Home Glossary HQ- Referring specifically to an ISO shipping container that is 1 foot taller than the standard 8’9″ container. HQ, or HC means high cube and is 9’6″. …
How long is a 45 container?
Overview
| External Length | 13,716 mm | 45 ft |
|---|---|---|
| External Width | 2,438 mm | 8 ft |
| External Height | 2,896 mm | 9 ft 6 ins |
| Internal Length | 13,556 mm | 44 ft 6 ins |
| Internal Width | 2,352 mm | 7 ft 9 ins |
How many drums is 200 Litres in a container?
Recommended, to save costs, take 4 off 200 litre drums (one pallet) x 2 pallets = 160 drums, in order to fill the container.
What is a standard container?
Standard containers are also known as general purpose containers. They are closed containers, i.e. they are closed on all sides. A distinction may be drawn between the following types of standard container: Standard containers with doors at one or both end(s)
What are the different sizes of ocean freight containers?
Based on customer needs ocean freight containers come in different dimensions and specifications. Most popular among sea freight container are 20’ standard container, 40’ standard container and 40’ HC.
What are the dimensions of a max cargo container?
INSIDE WIDTH: INSIDE HEIGHT: DOOR WIDTH: DOOR HEIGHT: CAPACITY: TARE WEIGHT: MAX CARGO WEIGHT: 12.029 m 2.350 m 2.392 m 2.340 m 2.292 m 67 m3 3780 Kgs 26700 Kgs Description Standard containers are also known as general purpose containers.
What are the dimensions of a 20 inch container?
Sea Container Dimensions. 20′ Standard Container. Cubic Capacity: 33 m 3 (1 172 ft 3) Inside Dimensions: Lenght: 5.895 m. (19′ 4 1/8″) Width: 2.350 m.
