In space division switching, a dedicated path is established between the calling and the called subscribers for the entire duration of the call. In time division switching, sampled values of speech signals are transferred at fixed intervals. The time division switching may be analog or digital.

What is the time-division switching?

first digital systems, known as time-division switching, the digitized speech information is sliced into a sequence of time intervals, or slots. Additional voice circuit slots, corresponding to other users, are inserted into this bit stream of data, in effect achieving a “time multiplexing” of several voice circuits.

What is TSI in networking?

From Wikipedia, the free encyclopedia. A time-slot interchange (TSI) switch is a network switch that stores data in RAM in one sequence, and reads it out in a different sequence. It uses RAM, a small routing memory and a counter.

What is combination switching?

A combination switch can be built by using a number of stages of time and space switches. A two-stage combination switch may be organized with time switch as the first stage and the space switch as the second stage or vice versa. Similarly, a subscriber connected to the outlet m and time slot n is identified by 0mn.

What is TST switch?

Time Space Time (TST) switches are a particularly useful configuration of switching elements providing both time and space translation between channels of Time Division Multiplexed (TDM) telecommunications transmission lines.

What is TSI and its role in time division switching?

“TSI (time-slot interchange) is the most popular technology in a time-division switch. It used random access memory (RAM) with several memory locations. The RAM fills up with incoming data from time slots in the order received. Slots are then sent out in an order based on the decisions of a control unit.”

What is time space switching?

Time space switching:- A time space (ts) switch takes the outputs of several time-division switches, for example, TSI switches and connects them as inputs as a space division switch. The effect of this paired arrangement is that packets can be swapped between different output lines.

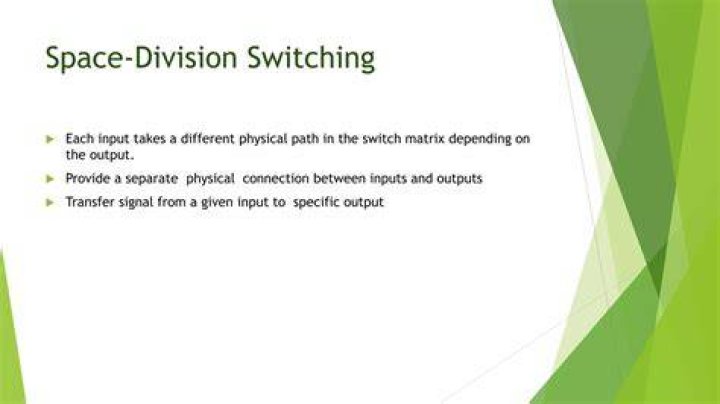

What is a space-division switch?

If there were two outputs on a time division switch contending for the same output, the space-division switch delivers one of the two outputs to another output path. This arrangement also reduces the number of cross points required. Dinesh Thakur holds an B.C.A, MCDBA, MCSD certifications.

How to configure a time multiplexed time division space switch?

A time multiplexed Time Division Space Switch can be configured around a space array, which has M input horizontals and N output verticals. If both inputs and outputs are equal, M=N the switch leads to non-blocking.

What is a digital time division digital switch?

A time division digital switch may also be designed by using a combination of space and time switching techniques. The paths in a circuit are separated from each other, spatially in space division switching. Though initially designed for analog networks, it is being used for both analog and digital switching.
