The current equation is based on five elements: SOIL = 2.20*Al + 2.49*Si + 1.63*Ca + 2.42*Fe + 1.94*Ti The assumptions that went into this equation are as follows. 1. Minerals present in soil.

What is G in geotechnical engineering?

Civil Engineering – Texas Tech University 3- Specific Gravity, Gs  Definition; specific gravity, Gs, of soil solids is the ratio of the density of the aggregate soil solids to the density of water.

What is origin of soil?

Soil is produced from broken down rocks, organic matter (decayed animals and plant life), water, and air”. ADVERTISEMENTS: Dokuchalev, the father of Soil Science, gave the factors of Soil Formation.

How do you calculate volume of soil?

How to find soil volume for square or rectangular beds

1. Measure the length, width and height of your bed. (Unless the boards are very thick, don’t worry about inside/outside measurements.)
2. Multiply all the measurements together: 6 x 3 x 1.4 = 25.2 cubic feet.
3. Divide the answer by 27 to get the number of cubic yards.

What is soil Soil Mechanics?

Soil mechanics is a branch of soil physics and applied mechanics that describes the behavior of soils. Soil mechanics is used to analyze the deformations of and flow of fluids within natural and man-made structures that are supported on or made of soil, or structures that are buried in soils.

What is CU in geotechnical engineering?

Uniformity Coefficient (Cu) which is a measure of the uniformity of grain size in the soil and is defined as the ratio of the 60% finer size (D60) to D10.

What is represented by D10?

Explanation: The size D10 is sometimes called as the effective size or effective diameter. Cc = (D30)2/D10×D60. i.e.CV = D60/ D10. Explanation: The D10 represents a size, in mm such that 10% of the particle is finer than D10 size.

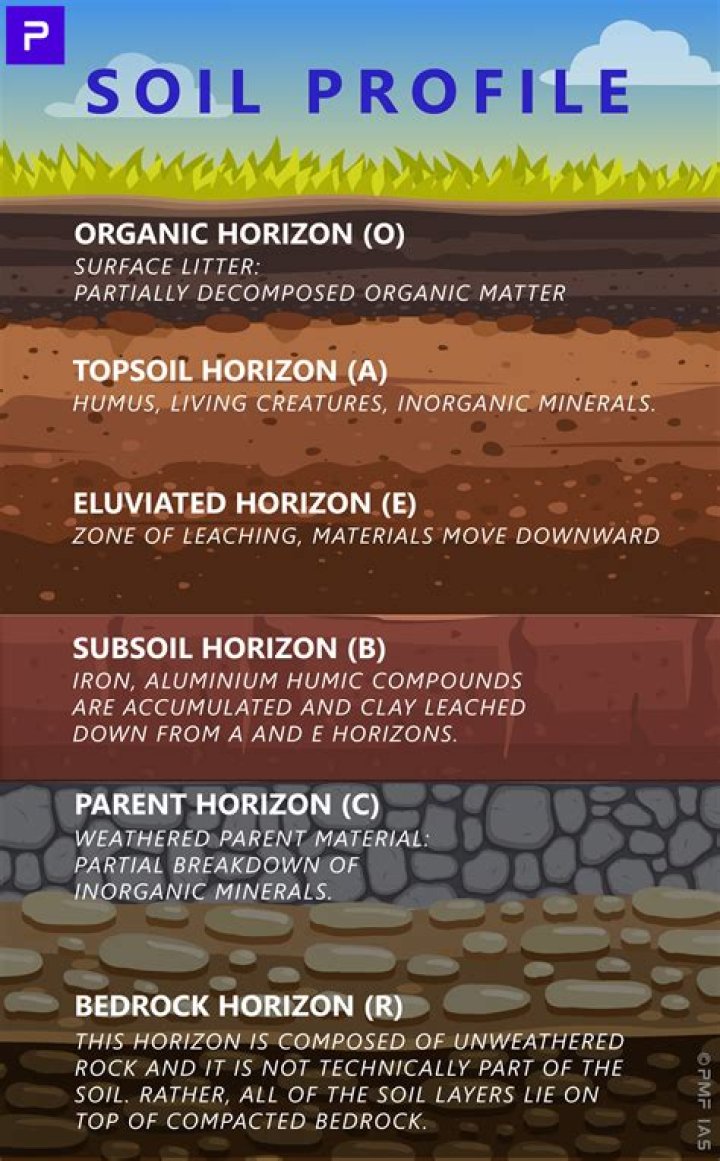

What is the origin and formation of soil?

Soil is the thin layer of material covering the earth’s surface and is formed from the weathering of rocks. It is made up mainly of mineral particles, organic materials, air, water and living organisms—all of which interact slowly yet constantly. Therefore, most living things on land depend on soil for their existence.

When was soil first discovered?

450 million years ago
Earth is 4.54 billion years old, and yet the rich reddy-brown sediments that we think of as soil didn’t appear until 450 million years ago.

What is the formula for soil cohesion?

c = Cohesion of the soil 69. Friction angle Ф, sinФ= [(σ1-σ3)/2] / [(σ1+σ3)/2 + c/tanФ] 70. Saturated soil, τ = c + (σ-u) tanФ = c + σ’ tanФ 71. Partially Saturated soil, τ = c + (σn-ua) tanФ +(ua-uw) tanФb

What is the formula for heaving of soil at exit point 53?

Heaving of soil at Exit Point 53. The pore water pressure at certain point A, uA = γw {zA+dw +(rest of Nd at point A / Nd)h} Like, uA = γw {zA+dw +(2 / 9)h} (at tailwater side) zA= Depth of soil Point A to top of the soil (at tailwater side) dw = Depth of water from top of the soil to water level(at tailwater side)

How do you calculate the water content of soil?

The water content (w) of a soil, which is expressed as a decimal or percent, is defined as: w = Ww / Ws x 100% where – w – water content Ww – weight of water Ws – weight of solids. 4. Soil Mechanics. Relationships between volumes of soil and voids are described by the void ratio (e) and porosity (n).

What is the basis of soil classification?

Classification is based on physical, chemical, and biological properties that can be observed and measured. Soils engineers think of a soil as any material that can be excavated with a shovel (no heavy equipment). Classification is based on the particle size, distribution, and the plasticity of the material.
