Thus, the scalloping loss is a measure of the shape of the main lobe of the DFT of the window. This is, of course, a computation of the scalloping loss at half a component of the DFT after some randomly chosen frequency for a very short window.

What is scalloping loss FFT?

Now, if an FFT’s input sinewave’s frequency is between two FFT bin centers (equal to a noninteger multi- ple of f s/N), the FFT magnitude of that spectral component will be less that the value of M in (1). That curve describes what is called the “scallop- ing loss” of an FFT [1].

What is leakage and windowing?

The spectrum of a product is the convolution between S(f) and another function, which inevitably creates the new frequency components. But the term ‘leakage’ usually refers to the effect of windowing, which is the product of s(t) with a different kind of function, the window function.

How do you deal with spectral leakage?

Increasing the sampling frequency, thereby generating longer discrete-time sequences for equiv- alent sampling times, reduces spectral leakage, but does not eliminate the problem. The role of data windowing is to reduce the artificial high frequencies introduced in the DFT by finite-length sampling.

What is the leakage effect of DFT?

The DFT is vulnerable to spectral leakage. Spectral leakage occurs when a non-integer number of periods of a signal is sent to the DFT. Spectral leakage lets a single-tone signal be spread among several frequencies after the DFT operation. This makes it hard to find the actual frequency of the signal.

What is leakage in signal processing?

Leakage, more explicitly called spectral leakage, is a smearing of power across a frequency spectrum that occurs when the signal being measured is not periodic in the sample interval.

What is DFT leakage?

What is spectral leakage caused by?

Spectral leakage due to FFT is caused by: mismatch between desired tone and chosen frequency resolution, time limiting an observation. Understand the concept using hands-on examples.

What is meant by spectral leakage?

What is picket fence effect?

The canonical fast Fourier transform (FFT) is afflicted by the picket fence effect (PFE). This can be ascribed to the simplification caused by viewing non-parametrically. Compared to the modulus-based interpolated FFT, this complex spectrum-based approach is less sensitive to spectral leakage.

Is scalloping loss a problem in practice?

Scalloping loss is not, however, a severe problem in practice. Real-world signals normally have bandwidths that span many frequency bins so that DFT magnitude response ripples can go almost unnoticed. Let’s look at a scheme called zero padding that’s used to both alleviate scalloping loss effects and to improve the DFT’s frequency resolution.

What is the scalloping loss of a window?

Thus, the scalloping loss is a measure of the shape of the main lobe of the DFT of the window. This is, of course, a computation of the scalloping loss at half a component of the DFT after some randomly chosen frequency for a very short window.

What is DFT scalloping loss?

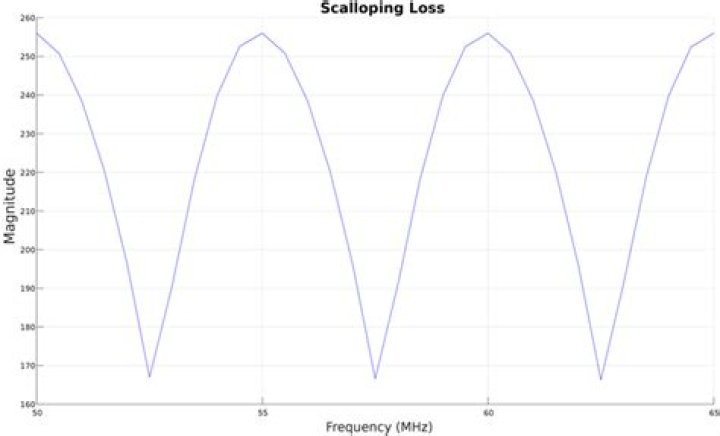

DFT SCALLOPING LOSS | Chapter Three. The Discrete Fourier Transform Scalloping is the name used to describe fluctuations in the overall magnitude response of an N-point DFT.

What is the difference between scalloping loss and spectral leakage?

–> This phenomenon of leaking energy from peak value to other samples is called Spectral leakage. –> This reduction in energy from main lobe is called scalloping loss. Spectral leakage cannot be eliminated but it can be reduced by using proper windowing technique before applying FFT.
