Rheobase is a measure of membrane potential excitability. In Greek, the root rhe translates to “current or flow”, and basi means “bottom or foundation”: thus the rheobase is the minimum current that will produce an action potential or muscle contraction.

How do you determine rheobase?

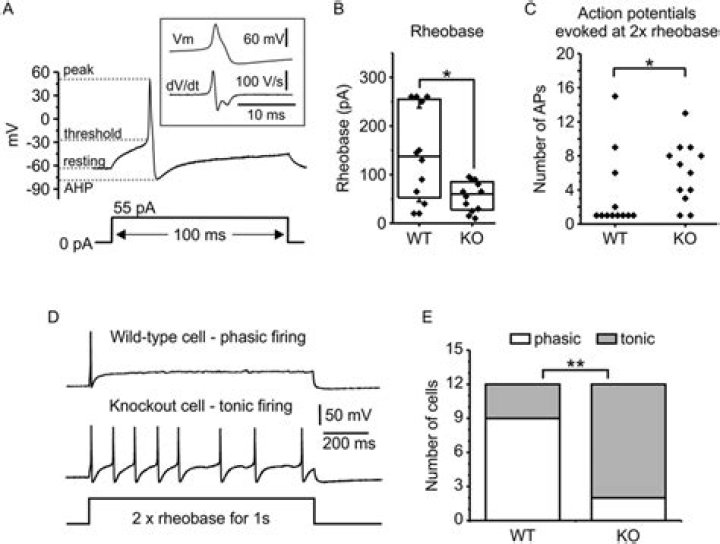

As you said, the criterion for the rheobase is that it is the minimum current at which the cell generates an action potential (after a long duration) All currents you inject lead to the generation of an action potential, so the rheobase is lower than 300 pA (around 100 pA guessing from the curvature of the black trace) …

What is Chronaxie and rheobase?

Chronaxie is the minimum time required for an electric current double the strength of the rheobase to stimulate a muscle or a neuron. Rheobase is the lowest intensity with indefinite pulse duration which just stimulated muscles or nerves.

What is rheobase voltage?

Step 1 – determine the rheobase, which is the minimum Stimulus Strength that will produce a response. This is the voltage to which the Strength-Duration curve asymptotes. In the example above, this value is 0.35 V.

Is Rheobase same as threshold?

The threshold , or minimal stimulus , is defined as “the electrical stimulus whose strength (or voltage) is sufficient to excite the tissue. Rheobase is defined as “the minimum strength (voltage) of stimulus which can excite the tissue”. Thank-you.

What is the difference between Rheobase and Chronaxie?

Rheobase is measured as the threshold stimulus current for an active response with a long-duration pulse and chronaxie is the pulse width at twice the rheobase threshold current19).

Is Rheobase and threshold stimulus same?

What is the difference between Rheobase and chronaxie?

What is Rheobase and its types?

Rheobase can be defined as the lowest stimulus current that continues to capture the heart when the stimulus duration is made very long. From: Clinical Cardiac Pacing, Defibrillation, and Resynchronization Therapy (Third Edition), 2007.

Is Rheobase and threshold same?

The threshold , or minimal stimulus , is defined as “the electrical stimulus whose strength (or voltage) is sufficient to excite the tissue. Rheobase is defined as “the minimum strength (voltage) of stimulus which can excite the tissue”.

How do you calculate chronaxie and Rheobase?

The Chronaxie is a duration measurement, corresponding to twice the Rheobase. From the graph above, the Rheobase is approximately 0.64 volts, and the Chronaxie is about 0.16 ms….

How do you determine Chronaxie and Rheobase?

What is the current duration of the rheobase?

The current duration varies among publications, but is on the order of 0.1-5 seconds. However, this also implies that an injected current that did not result in spikes could have resulted in spikes if the duration was longer. For this reason, the current duration should be specified when reporting a cell’s rheobase.

What is Rheobase in real life?

Rheobase is defined as the current amplitude of infinite duration needed to depolarize the membrane potential to threshold for action potential generation. In real life, you can inject depolarizing current steps of increasing amplitude (with small increments) until the cell fires.

What is the purpose of electrophysiology studies?

Electrophysiology Studies (EPS) Electrophysiology studies (EPS) are tests that help doctors understand the nature of abnormal heart rhythms (arrhythmias). Quick facts. Electrophysiology studies test the electrical activity of your heart to find where an arrhythmia (abnormal heartbeat) is coming from.

How is the rheobase of a nerve cell measured?

This is accomplished by applying long polarizing currents to the nerve and measuring the influence of voltage on voltage gated-ion channels beneath myelin. In neurons, the rheobase is defined as the smallest injected step current, of infinite duration, that results in one action potential.
