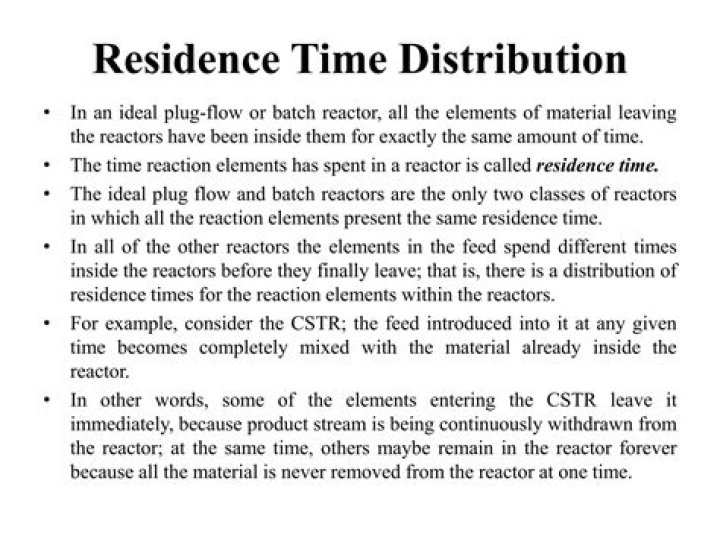

In an ideal continuous stirred-tank reactor (CSTR), the flow at the inlet is completely and instantly mixed into the bulk of the reactor. The reactor and the outlet fluid have identical, homogeneous compositions at all times. The residence time distribution is exponential: The mean is T and the variance is 1.

Why is residence time important in CSTR?

The properties and the quality of the products strongly depend on the residence time of the different substances in the reactor. Thus, for the design of such continuously operating apparatuses, it is necessary to have proper in- formation concerning the residence time distribution.

What is residence time distribution in reactor?

The residence-time distribution (RTD) of a reactor is a characteristic of the mixing that occurs in the chemical reactor. There is no axial mixing in a plug-flow reactor, and this omission is reflected in the RTD. It also should not adsorb on the walls or other surfaces in the reactor.

What do you mean by residence time distribution?

The residence time distribution is the probability distribution of the time a piece of material is likely to spend in the process. The knowledge of this distribution is important when designing the process, as well as when the process is operated, in order to optimize the process operation conditions.

Is residence time the same as retention time?

Residence Time (or Retention Time) is a measure of how long a fluid stays in a vessel for the equilibrium state at required pressure and temperature. The Retention Time is determined by dividing the liquid volume inside the vessel by the liquid flow rate. …

What is the formula for residence time?

residence time: Tr = V/I [T], a measure of the average time a molecule of water spends in a reservoir. The residence time defined for steady-state systems is equal to the reservoir volume divided by the inflow or outflow rate.

What is the purpose of carrying out the residence time distribution analysis?

Residence time distribution (RTD) characterises the main flow features in non-ideal flow reactors, which is very useful to determine the mixing behaviour and conversion rate of a reactor system.

How do you calculate residence time?

The MRT is calculated by summing the total time in the body and dividing by the number of molecules, which is turns out to be 85.6 minutes. Thus MRT represents the average time a molecule stays in the body.

How do you calculate residence time in CSTR?

1.1) Flow Rate Q = V/RT If for example the volume of the reactor is 400 ml and the flow rate is 40ml/min. then the Residence time R is 10 minutes.

How do you calculate residence time from concentration?

The residence time (lifetime) of a substance is determined with the knowledge of the amount (or concentration) of that substance and the combined rate of loss of the substance from the reservoir. Alternately, the residence time can be calculated as the reciprocal of the sum of all first order rate constants.

How is residence time determined?

By definition, the residence time is the amount of material in the reservoir, divided by either the inflow or the outflow (they are equal when the reservoir is at equilibrium). If there are multiple inflows or outflows, then we use the sum of the outflows or inflows to determine the residence time.

How is residence time calculated in chromatography?

Residence Time Calculation is made from the following formula: Volumetric flow rate (L/h) = (flow velocity (cm/h) x (column crossectional area (cm2) / 1000).

What is the residence time distribution of a CSTR?

The residence time distribution (RTD) profile of the single-stage CSTR exhibits an exponential decay, 38 which is usually undesired when side reactions exist in the system. A narrow RTD profile is favored for increasing yield and selectivity. Connecting CSTRs in series (Fig.

How are residence time distributions measured?

Residence time distributions are measured by introducing a non-reactive tracer into the system at the inlet. The concentration of the tracer is changed according to a known function and the response is found by measuring the concentration of the tracer at the outlet.

What is the residence time distribution of a chemical reactor?

The residence time distribution(RTD) of a chemical reactor is a probability distribution function that describes the amount of time that a fluid element could spend inside the reactor. Prof. Danckwerts introduced the concept of `fluid element’, meaning a small volume of fluid where continuous properties, such as concentration, can still be defined.

What does CSTR stand for?

We present a new miniature continuous stirred-tank reactor (CSTR) cascade to handle solid-forming reactions in flow. Single-phase residence time distribution (RTD) measurements of the CSTR cascade reveal nearly ideal CSTR mixing behavior of the individual units.
