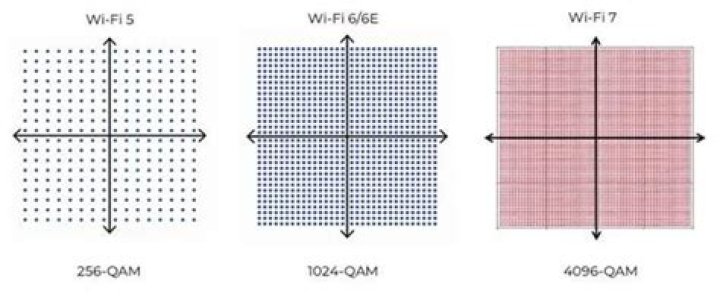

What is QAM in WIFI?
Grace Evans Quadrature amplitude modulation (QAM) is a highly developed modulation scheme used in the communication industry in which data is transmitted over radio frequencies. Put simply, higher QAM levels increase throughput capabilities in wireless devices.
What does QAM stand for?
Quadrature Amplitude Modulation
QAM (Quadrature Amplitude Modulation) A combination of amplitude and phase modulation (and shift-keying) techniques used to transmit 9,600 bits per second (bps) over a 2,400-baud line.
What is QAM in frequency?
QAM (quadrature amplitude modulation) is a method of combining two amplitude modulation (AM) signals into a single channel. In this scenario, the QAM signal comes with two carriers. Each has the same frequency but differs in phases by 90 degrees, or one-quarter of a cycle, which is the basis for the term quadrature.
What is Amwave?
Amplitude modulation (AM) is a modulation technique used in electronic communication, most commonly for transmitting messages with a radio wave. In amplitude modulation, the amplitude (signal strength) of the carrier wave is varied in proportion to that of the message signal, such as an audio signal.
What is the symbol rate of 256 QAM?
Reliable Carrier Lock
| Digital Modulation Format | Minimum Result Length (0 Hz frequency offset) | Maximum frequency offset (Result Length = 1000 symbols) |
|---|---|---|
| 64-QAM | 150 symbols | 4.65% symbol rate |
| 128-QAM | 250 symbols | 0.3% symbol rate |
| 256-QAM | 400 symbols | 0.3% symbol rate |
| 512-QAM | 1000 symbols | 0.15% symbol rate |
What is the combination of QAM?
Quadrature Amplitude Modulation (QAM) is a combination of two modulation techniques: Amplitude Modulation (AM) and Phase Modulation (PM).
What is QAM in cable?
QAM Tuner (REQUIRED) QAM (quadrature amplitude modulation) is the format by which digital cable channels are encoded and transmitted via cable television providers, including Apogee. A QAM tuner is the cable equivalent of an ATSC tuner which receives over-the-air digital channels broadcast by local television stations.
How does a QAM work?
QAM is a modulation scheme that transmits data by changing the amplitude, or power level, of two signals: first in-phase with the incoming data and the second 90 degrees out of phase. QAM relates to the number of bits of information encoded in each time period.
How do I get an AM signal?
Production of Amplitude Modulated Wave Let us assume our base or message signal to be generated as specified above. To produce an amplitude modulated wave we need to superimpose this signal with another signal of higher frequency. This signal is the ‘Carrier Signal’ and differs from one carrier to another.
How do I make an AM signal?
AM generation involves mixing of a carrier and an information signal. In low level modulation, the message signal and carrier signal are modulated at low power levels and then amplified. The advantage of this technique is that a small audio amplifier is sufficient to amplify the message signal.
