For the circuit in Fig. 5.10. 1, the NMOS transis- tor has Vtn = 0.5 V, kn = 10 mA/V2, and λn = 0, and the PMOS transistor has Vtp = −0.5 V, kp = 12.5 mA/V2, and |λp| = 0. Analyze the circuit to determine the currents in all branches and the voltages at all nodes.

What is 2N7000 transistor?

2N7000 is a N-channel enhancement mode Field Effect Transistor is produced using Fairchild’s proprietary, high cell density, DMOS technology. This very high density process has been designed to minimize on-state resistance while provide rugged, reliable and fast switching performance.

What is the minimum gate threshold voltage of the 2N7000?

Gate threshold voltage (VGS-th) is 3V.

How is VG calculated in MOSFET?

In First Small Signal Equivalent Model of MOSFET, I have found out Vgs = Vg= (Vin R1//R2)/(Rg+R1//R2), because R1//R2 parallel with the Vin and Rg. Using Voltage divider, I found Vgs=Vg=(Vin R1//R2)/(Rg+R1//R2).

What is N-channel MOSFET?

N-Channel MOSFET is a type of metal oxide semiconductor field-effect transistor that is categorized under the field-effect transistors (FET). This type of transistor is also known as an insulated-gate field-effect transistor (IGFET). Sometimes it is also known as a metal-insulator field-effect transistor (MIFET).

How do mosfets work?

It works by varying the width of a channel along which charge carriers flow (electrons or holes). The charge carriers enter the channel at source and exit via the drain. The width of the channel is controlled by the voltage on an electrode is called gate which is located between source and drain.

Why do MOSFETs need drivers?

A MOSFET usually needs a gate driver to do the on/off operation at the desired frequency. For high frequencies, MOSFETs require a gate drive circuit to translate the on/off signals from an analog or digital controller into the power signals necessary to control the MOSFET.

What is 2N7000 MOSFET?

2n7000 is a uni-polar N-Channel Enhancement mode MOSFET which comes with terminals called drain source and gate. In this transistor, the input voltage applied at the gate terminal is used to control the conductivity between source and drain.

What kind of power does a UTC 2n7000z have?

UNISONIC TECHNOLOGIES CO., LTD 2N7000Z Power MOSFET 115m Amps, 60 Volts N-CHANNEL ENHANCEMENT MODE MOSFET DESCRIPTION 1 The UTC 2N7000Z has been designed to minimize on-state resistance to provide rugged, reliable, and fast switching TO-92performance.

Do I need a protection gate resistor for the 2N7000?

However, protection gate resistor is required for the 2n7000 when it is used for the circuits that come with external gate vulnerability. 2n7000 is a uni-polar voltage controlled device which consists of three terminals. Gate is practically isolated from drain and source and it draws no current.

What is the structure of a 2N7000 transistor?

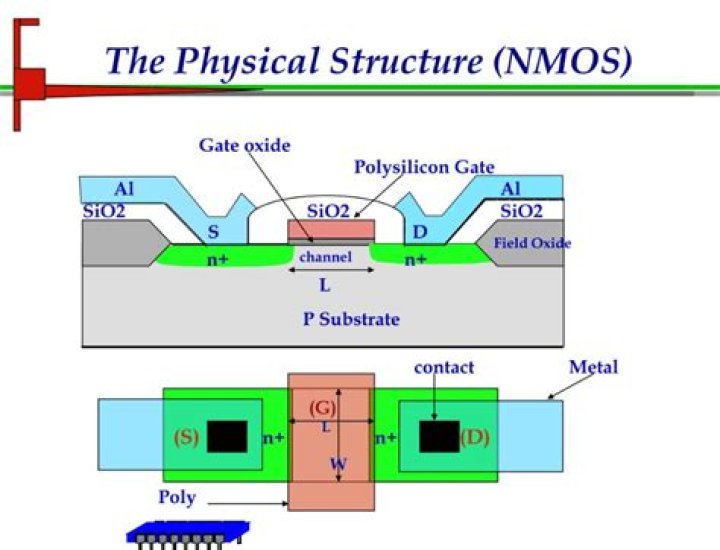

There is an insulation layer that lies between the gate and the body of transistor. In 2n7000, the conduction between source and drain is carried out by the movement of electrons. In this transistor, source and drain are made up of n-type material while its body and substrate is made up of p-type material.
