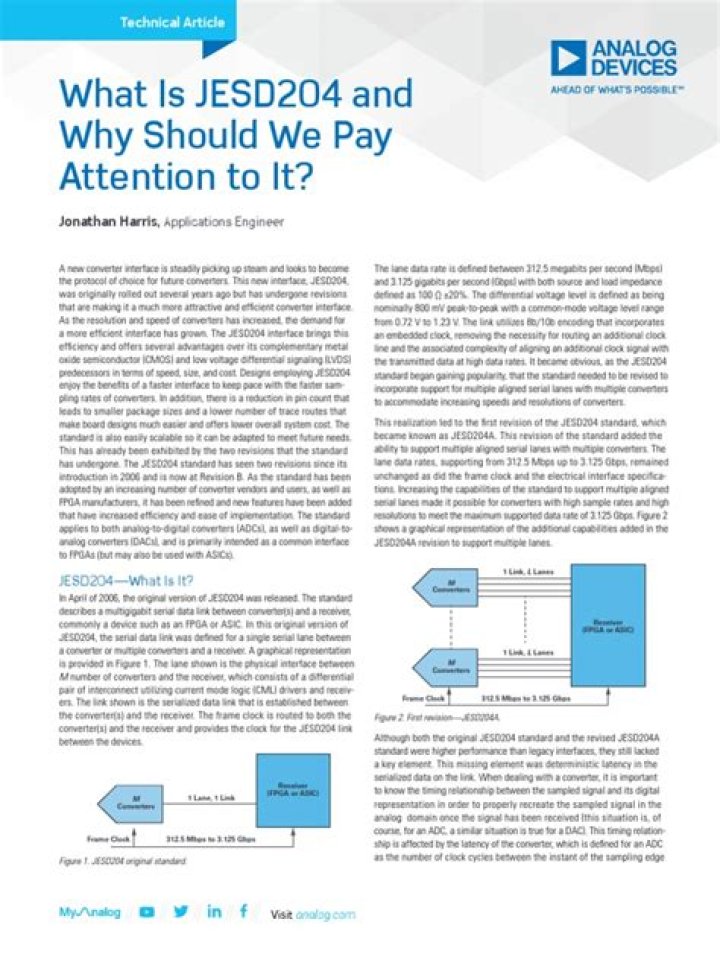

JESD204 is a standardized serial interface used by data converters (ADCs and DACs) and logic devices (FPGAs or ASICs). This interface was developed by the JEDEC JESD204 standards committee to reduce the number of data inputs/outputs between high-speed data converters (ADCs and DACs) and logic devices (FPGAs or ASICs).

What is deterministic latency?

Deterministic Latency (DL) Definition. • Wikipedia: ”A deterministic system is a system in which. no randomness is involved in the development of future states of the system. A deterministic model will thus always produce the same output from a given starting condition or initial state.”

What is true of deterministic processes?

If something is deterministic, you have all of the data necessary to predict (determine) the outcome with 100% certainty. The process of calculating the output (in this example, inputting the Celsius and adding 273.15) is called a deterministic process or procedure.

What are SerDes used for?

The primary use of a SerDes is to provide data transmission over a single line or a differential pair in order to minimize the number of I/O pins and interconnects.

What is SerDes in Kafka?

Every Kafka Streams application must provide Serdes (Serializer/Deserializer) for the data types of record keys and record values (e.g. java. String or Avro objects) to materialize the data when necessary. …

Is rs422 an LVDS?

RS-422 has a voltage swing of two volts, but LVDS only has 350 millivolt voltage swing. With a lower voltage swing, it only takes about 0.8 nanoseconds for LVDS to switch from low to high or high to low. This low voltage string offers, then, added benefits of reduced power consumption.

Is LVDS digital or analog?

Multipoint LVDS The original LVDS standard only envisioned driving a digital signal from one transmitter to one receiver in a point-to-point topology. It uses termination resistors at each end of the differential transmission line to maintain the signal integrity.

What does it mean when a model is deterministic?

In mathematics, computer science and physics, a deterministic system is a system in which no randomness is involved in the development of future states of the system. A deterministic model will thus always produce the same output from a given starting condition or initial state.

What makes a network deterministic?

Deterministic Networking is a feature supplied by a network that is primarily a best-effort packet network consisting of bridges, routers, and/or MPLS label switches. The Deterministic quality of service is supplied to flows designated as being critical to a real-time application.

How is the Xilinx jesd204b delivered?

JESD204B transmitter implementation using a Xilinx FPGA. Figure 5. JESD204B receiver implementation using a Xilinx FPGA. The latest Xilinx JESD204 IP core is delivered and encrypted as a black box via the Vivado ® Design Suite.

What is the jesd204b interface?

The Xilinx® LogiCORE™ IP JESD204 core implements a JESD204B interface supporting line rates from 1Gb/s to 12.5Gb/s(1). The JESD204 core can be configured as a transmitter or receiver. (2) Features

What is logicore™ IP jesd204?

The LogiCORE™ IP JESD204 core is designed to Joint Electron Devices Engineering Council (JEDEC®) JESD204B or JESD204C standard. The JESD204 specifications describe serial data interfaces and the link protocols between data converters and logic devices.

How many lanes does the jesd204c support?

Each core supports between 1-8 lane configurations and can be combined with other cores to achieve more lanes. The IP Core can be configured as JESD204C Transmitter for interfacing to DAC device using either a 64B66B or 8B10B link layer.
