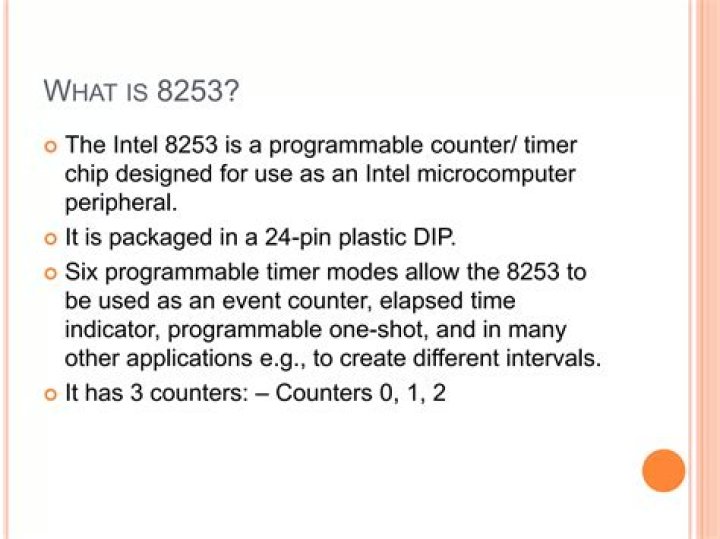

The Intel 8253 and 8254 are Programmable Interval Timers (PTIs) designed for microprocessors to perform timing and counting functions using three 16-bit registers. Each counter has 2 input pins, i.e. Clock & Gate, and 1 pin for “OUT” output. To operate a counter, a 16-bit count is loaded in its register.

What is 8254 programmable interval time with diagram?

8254 is a device designed to solve the timing control problems in a microprocessor. It has 3 independent counters, each capable of handling clock inputs up to 10 MHz and size of each counter is 16 bit.

How many modes of operation are possible for 8253 timer counter?

The timer has three counters, numbered 0 to 2. Each channel can be programmed to operate in one of six modes. Once programmed, the channels operate independently. Each counter has two input pins – “CLK” (clock input) and “GATE” – and one pin, “OUT”, for data output.

What are the features of 8253?

Features of 8253 / 54

• It has three independent 16-bit down counters.
• It can handle inputs from DC to 10 MHz.
• These three counters can be programmed for either binary or BCD count.
• It is compatible with almost all microprocessors.

What is the use of timer IC 8253?

The Intel 8253 is programmable Interval Timers (PTIs) designed for microprocessors toper form timing and counting functions using three 16-bit registers. Each counter has 2 input pins, i.e. Clock & Gate, and 1 pin for“OUT” output. To operate a counter, a 16-bit count is loaded in its register.

Which of the following is not present in 8253?

Which of the following is mode 0 in 8253? Explanation: The interrupt on the terminal count is known as mode 0 for the 8253. An initial value is loaded into the count register and then starts to count down at the frequency which is determined by the clock input.

How does the Intel 8253/8254 programmable interval timer work?

The Intel 8253 and 8254 are Programmable Interval Timers (PTIs) designed for microprocessors to perform timing and counting functions using three 16-bit registers. Each counter has 2 input pins, i.e. Clock & Gate, and 1 pin for “OUT” output. To operate a counter, a 16-bit count is loaded in its register.

What are programmable interval timers?

The programmable Interval Timers are specially designed by Intel called as 8253 and 8254 constructed for microprocessors to perform timing and counting functions by using three 16-bit registers. Each counter has 2 input pins, i.e. Clock & Gate, and 1 pin is for “OUT” output. To perform a counter, a 16-bit count is loaded in its register.

What is the functional block diagram of 8253?

Draw the functional block diagram of 8253. Ans. The functional block diagram of 8253 is shown below: The figure shows that there are six blocks interconnected by an internal data bus. The six blocks include three counters (counter 0, 1 and 2), a data bus buffer, a Read/Write logic and a control word register.

How many modes of operation are there in IC2 8254/8253?

2. 8254 / 8253 • Programmable interval timer/counter • Includes three independent 16-bit counters • Has six modes of operation • Operation:- – A 16-bit count is loaded on the counter and on command it starts decrement – When the count reaches zero it generates a pulse 5. Mode 0: Interrupt on Terminal Count
