Hysteresis phenomenon occurs when ferromagnetic materials are magnetized in one direction; even when the imposed magnetizing field is removed, ferromagnetic materials will not relax back to zero magnetization. When this occurs, applying an alternating magnetic field will yield a hysteresis loop.

What do you mean by the word hysteresis?

hysteresis. / (ˌhɪstəˈriːsɪs) / noun. physics the lag in a variable property of a system with respect to the effect producing it as this effect varies, esp the phenomenon in which the magnetic flux density of a ferromagnetic material lags behind the changing external magnetic field strength.

What is hysteresis current?

Hysteresis loss in a transformer occurs due to magnetization saturation in the core of the transformer. Magnetic materials in the core will eventually become magnetically saturated when they are placed in a strong magnetic field, such as the magnetic field generated by an AC current.

What does you mean by hysteresis in electronics?

(Electrical engineering: Circuits, Electrical power) Hysteresis is something that happens with magnetic materials so that, if a varying magnetizing signal is applied, the resulting magnetism that is created follows the applied signal, but with a delay.

What is receiver hysteresis?

Receiver hysteresis is commonly used to ensure glitch-free reception even when differential noise is present. This application report compares the noise immunity of the SN65HVD37 to similar devices available from competitors. Contents.

What is hysteresis explain with diagram?

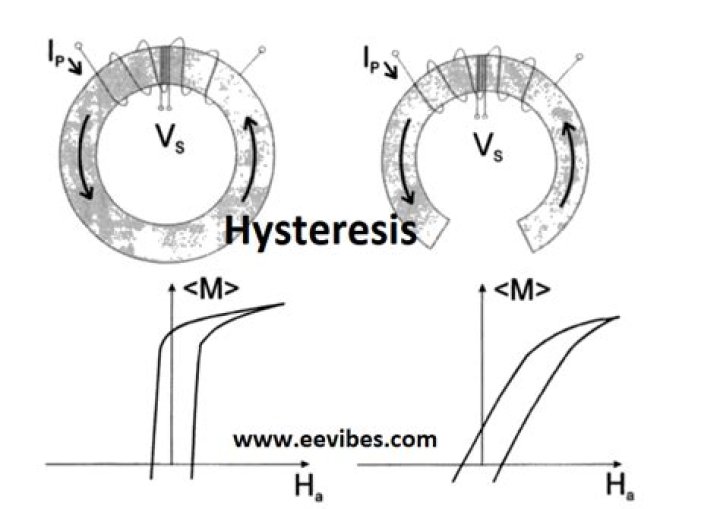

A hysteresis loop shows the relationship between the induced magnetic flux density B and the magnetizing force H. It is often referred to as the B-H loop. This is referred to as the point of retentivity on the graph and indicates the remanence or level of residual magnetism in the material.

How do you say the word hysteresis?

Break ‘hysteresis’ down into sounds: [HIST] + [UH] + [REE] + [SIS] – say it out loud and exaggerate the sounds until you can consistently produce them.

What is called hysteresis loss?

Definition: The work done by the magnetising force against the internal friction of the molecules of the magnet, produces heat. This energy which is wasted in the form of heat due to hysteresis is called Hysteresis Loss.

What is hysteresis in an instrument?

Hysteresis is a phenomenon under which the measuring instrument shows different output effects during loading and unloading. Hysteresis results from the inelastic quality of an element or device.

What is hysteresis in microcontroller?

Hysteresis in a circuit arises when an input above a certain level triggers an output, but the output isn’t reset until the input reaches a lower level. With an input between those values, the output remains the same (high or low). The difference between the two input values is the hysteresis.

What is meant by hysteresis Class 12?

Hysteresis – The condition in which the magnetic induction ‘B’ lags behind the magnetizing field H is called hysteresis. This happens when an external magnetic field is applied to a ferromagnet such as iron and the atomic dipoles are aligned with it.

What is hysteresis in an analog circuit?

As an input analog signal continuously changes at the inputs in either circuit, this induces switching behavior at the output. The output can switch at different input voltages in the presence of hysteresis. This difference is seen when one compares the output as the input rises or falls.

What is meant by hysteresis in Electrical Engineering?

, Electrical Engineer. Hysteresis means a change in the transfer characteristics of a circuit, usually amplifier circuits. It is particularly useful when you have a comparator amplifier that compares the voltage between its two inputs and then decides an output based on the result.

What is hysteresis loop?

Hysteresis loop is the phenomenon of lagging behind the magnetic induction (B) with respect to the magnetising field (H). Hysteresis loop is the result of a cycle of magnetization and demagnetization of the magnetic material.

Why do you need a circuit simulator for hysteresis?

Whenever you are incorporating hysteresis in analog circuits, you need a strong circuit simulator that helps automate a number of important analyses like plotting a B-H curve of a core, for example. A B-H curve tells how the magnetic properties of used materials responded to outside magnetic forces.
