What is globular transfer?

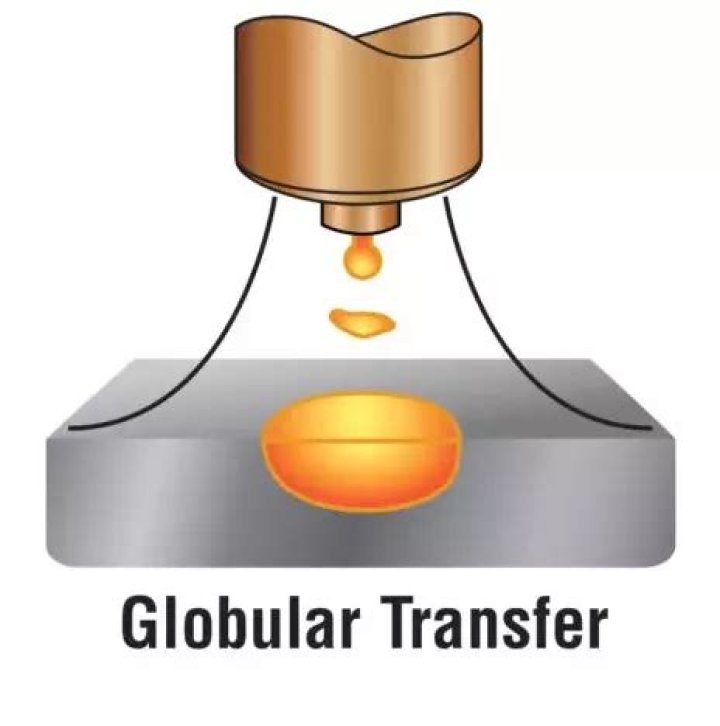

Grace Evans 3.14. 4 Globular Transfer. This type of transfer refers to the state of transfer between short-circuiting and spray-arc transfer modes. Large globules of wire are expelled off the end of the electrode wire and enter the weld puddle.
What is globular transfer used for?
Globular Transfer The method typically is used to weld in the flat and horizontal positions because the droplet size is large and would be more difficult to control if used in the vertical and overhead positions compared to the short-circuit arc transfer.
What positions can an ER70S-6 electrode be used for?
Crown ER70S-6 is widely used in frame fabrication, automotive structures, farm implements, construction equipment, pipe fabrication, railcar construction and repair, sheet metal work and general fabrication. Above parameters are for flat and horizontal fillet positions.
What are 3 types of metal transfer in arc welding?
The three transfer modes in GMAW are globular, short-circuiting, and spray. There are a few recognized variations of these three transfer modes including modified short-circuiting and pulsed-spray.
When the globular transfer method is used what causes the metal droplet to leave the electrode wire?
Welding
| Question | Answer |
|---|---|
| When using short circuiting metal transfer, what causes the metal droplet to leave the electrode wire? | The surface tension of the pool and pinch force |
| The pulsed spray transfer method uses the peak current for welding. The background current is used to ____ the arc. | maintain |
What type metal transfer would most likely result in lack of fusion?
This defect can be seen in Figure 10-2. The most common cause of lack of fusion is a poor welding technique. Either the weld puddle is too large (travel speed too slow) and/or the weld metal has been permitted to roll in front of the arc. Again, the arc must be kept on the leading edge of the puddle.
What is a disadvantage of short circuit metal transfer?
Because this mode of transfer has a low heat input it is best suited to the welding of thin materials and for all positional welding due to the small weld pool formed. The downside to this is that lack of fusion can occur in thick section materials.
What type of welding is GTAW?
Gas Tungsten Arc Welding
Gas Tungsten Arc Welding: GTAW Gas tungsten arc welding (GTAW) is also known as TIG welding, which stands for tungsten inert gas. Just like in GMAW welding, an inert shielding gas is used.
What are the five modes of transfer?
Modes of Metal Transfer: 5 Types | Metallurgy
- Type # 1. Short-circuit Transfer:
- Type # 2. Globular Transfer:
- Type # 3. Spray Transfer:
- Type # 5. Metal Transfer from Additional Filler Wire:
What type of wire is ER70S-6?
mild steel welding wire
ER70S-6 is a mild steel welding wire that contains higher levels of manganese and silicon than other standard grades of MIG wire to produce high quality welds when used on dirty, oily, or rusty steel.
