What is difference between 568A and 568B?
Andrew Davis The 568A and 568B colour code schemes are used to wire the RJ45 eight position modular plugs correctly. There is no difference between the two wiring schemes in connectivity or performance when connected form one device to another, so long as the devices are wired for the same scheme.
Does Australia use 568A or 568b?
Colour codes used in Australia and the USA are predominantly 568A whereas in Europe its 568B. It doesn’t really matter once you use the same code at the patch panel and outlet ends, most I/O’s will display both colour codes.
Are most Ethernet cables A or B?
Two different wiring standards exist for wired Ethernet: T568A (A wiring) and T568B (B wiring). StarTech.com uses the T568B wiring standard for all of the straight-through Ethernet cables.
Why is 586b more popular than 586?
I believe it is because 586B is just more popular and common. There is no difference in performance between the two. They are exactly the same except the Orange and Green pairs are swapped. The following link provides documentation if you’re interested:
What is the difference between 586b and 586 orange and green?
Orange, blue in the middle with a green forcefield, brown on the end. Double check to make sure stripes and solids alternate. I believe it is because 586B is just more popular and common. There is no difference in performance between the two. They are exactly the same except the Orange and Green pairs are swapped.

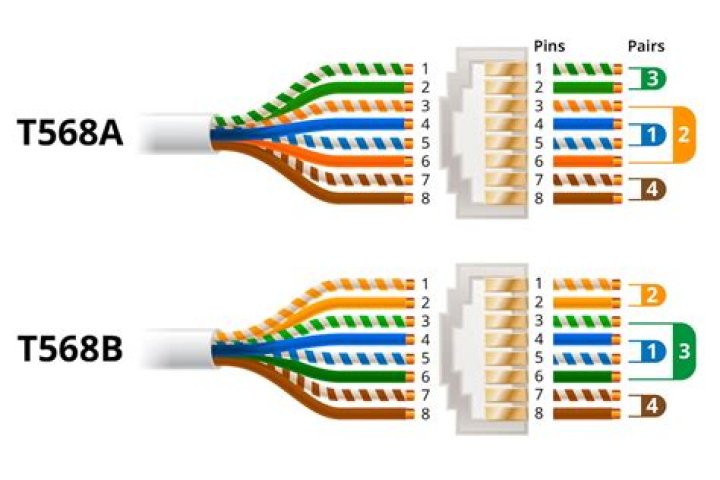

What is the difference between T568A and T568B?
T568A and T568B are the termination standards used by Internet backbone infrastructure, Internet providers and all the way down to homeowners or businesses. The only real difference between these two pin-to-pair assignments are the green and orange pairs.
Why do people use 586b instead of 586a when running Cat5 cables?
Why do people usually use 586b rather than 586a when running cat5 cables? Because I already memorized orangestripe orange, greenstripe blue, bluestripe green, brownstripe brown. orangestripe orange, greenstripe blue, bluestripe green, brownstripe brown.
