What is bearing capacity formula?
Rachel Hunter The bearing capacity of soil is given by the equation. Q a = Q u F S Q_a=\frac{Q_u}{FS} Qa=FSQu. in which Qa is the allowable bearing capacity (in kN/m2 or lb/ft2), Qu is the ultimate bearing capacity (in kN/m2 or lb/ft2) and FS is the safety factor.
How do you calculate the load bearing capacity of a steel structure?
Solution:
- Loads on the RCC Slab. Self-weight= concrete unit weight * Volume of concrete. = 24 * 0.1= 2.4 KN/m2
- Loads on the Beam. Self-weight= concrete unit weight* beam width*beam height. =24 * 0.28*0.25= 1.68 KN/m.
- Compute Applied Moment. Assume partial fixity of columns.
- Geometry of the Original Section.
What is design bearing capacity?
Introduction. In geotechnical engineering, bearing capacity is the capacity of soil to support the loads applied to the ground. The bearing capacity of soil is the maximum average contact pressure between the foundation and the soil which should not produce shear failure in the soil.
How do you calculate structural load capacity?
Dead Load Calculation for a Building Dead load = volume of member x unit weight of materials. By calculating the volume of each member and multiplying by the unit weight of the materials from which it is composed, an accurate dead load can be determined for each component.
What is C in Terzaghi’s equation?

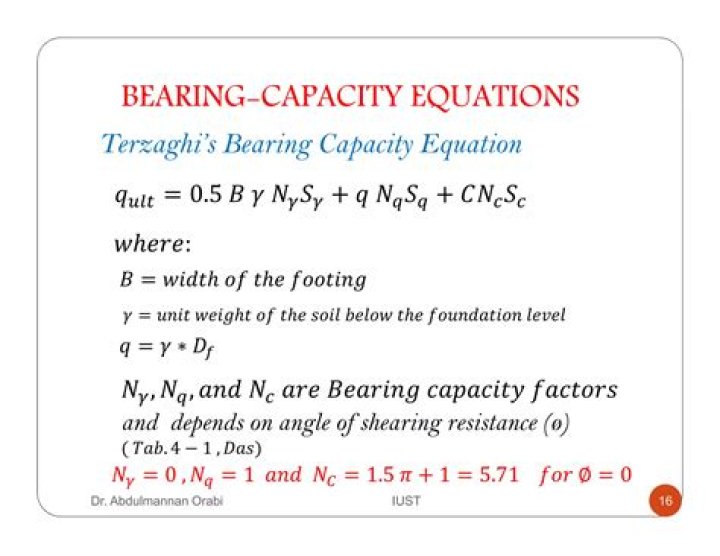

Terzaghi’s Bearing Capacity Theory Terzaghi developed a method for determining bearing capacity for the general shear failure case in 1943. The equations, which take into account soil cohesion, soil friction, embedment, surcharge, and self-weight, are given below. c′ is the effective cohesion.
What is the formula for net safe bearing capacity?
4. Safe Bearing Capacity ( qs ): It means the gross safe Bearing Capacity which used in design. It’s the net pressure which the soil carry without increase in allowable settlement….qult = CNcλc + qNqλq + γ2BNγλγ
| Foundation | λC – λq | λγ |
|---|---|---|
| Square & Circle | 1.3 | 0.7 |
How is pile bearing capacity calculated?
Step 2: compute the ultimate end bearing capacity (acting as individual piles). Ultimate end bearing capacity in clay = Nc × C × pile tip area (Nc = 9). Ultimate end bearing capacity in soft clay = 9 × 120 × π × diameter2/4 = 848.2 lbs/per pile. Total ultimate bearing capacity per pile = 76,920 + 848.2 = 77,768 lbs.
What is the bearing strength of the plate?
bearing strength of the plate. The design bearing strengths are given for different edge distances (1.25 in. and 2 in.), different Fu (58 and 65 ksi), and different bolt diameters (5/8 – 1-1/2 in.) Table 7-13 also includes the edge distance (Le full) required to develop the full bearing
How do you calculate allowable bearing capacity?
The allowable bearing capacity is normally calculated from the ultimate bearing capacity using a factor of safety (Fs). When excavating for a foundation, the stress at founding level is relieved by the removal of the weight of soil. The net bearing pressure(qn) is the increase in stress on the soil. qn= q – qo qo= g D
How to calculate the ultimate bearing capacity of a strip footing?
Terzaghi (1943) stated the ultimate bearing capacity of a strip footing as a three-term expression incorporating the bearing capacity factors:Nc, Nqand Ng, which are related to the angle of friction (f´). qf=c.Nc+qo.Nq+ ½g.B .Ng For drained loading, calculations are in terms of effective stresses; f´ is > 0 and N c, Nqand Ngare all > 0.
How do you calculate the bearing strength of a bolt?
Rn = C x Fu x bearing area = C Fu db t If deformation is not a concern then C = 3, If deformation is a concern then C=2.4 C = 2.4 corresponds to a deformation of 0.25 in. Finally, the equation for the bearing strength of a single bolts is φRn
