between 3 and 6
A Delta E between 3 and 6 is usually considered an acceptable number in commercial reproduction, but the color difference may be perceived by printing and graphic professionals. (Note: Human vision is more sensitive to color differences if two colors actually touch each other).

What does lab mean in color?

All the color chain elements will use the common L, a, b mode to communicate with each others under the control of the color management system and with the help of the ICC profiles. ‘L’ is the lightness, whereas ‘A’ ( green / magenta ) and ‘B’ (blue / yellow ) are the chromatic axes. Back to FAQ.

What is Delta E in Colour measurements?

Delta E is a standard measurement — created by the Commission Internationale de l’Eclairage (International Commission on Illumination) — that quantifies the difference between two colors that appear on a screen.

What is Delta value on color?

Delta-E (dE) is a single number that represents the ‘distance’ between two colors. The idea is that a dE of 1.0 is the smallest color difference the human eye can see.

What Delta E can the human eye see?

Delta-E: 3.31 Delta-E values of around 3 represent the limit of most people’s perception.

What is Decmc?

DECMC = Delta E CMC Delta E CMC tolerancing is based on Delta L*C*h°, but provides better agreement between visual assessment and measured color difference. The CMC calculation mathematically defines an ellipsoid around the standard color with semi-axis corresponding to hue, chroma and lightness.

How do you calculate delta E in a lab?

1. Delta E is defined as the difference between two colors in an L*a*b* color space.
2. The following delta E values are valid universally:
3. 0 – 1.
4. CIE L*a*b*
5. CIE L*a*b*
6. The difference between two colors in the three-dimensional L*a*b* color space is known as delta E.

Is Delta E positive or negative?

When energy is being absorbed, delta e is positive and when energy is being emitted, delta e is negative.

What is deltadelta E in color?

Delta E (the total color difference) is based on delta L*, delta a*, and delta b* color values, all of which provide a complete numerical descriptor of the color in a rectangular coordinate system. The meanings are as follows: dL* represents a lightness difference between the sample and standard colors.

What is the difference between L*A*B* colorspace and Delta-E 1976?

The L*a*b* colorspace was devised in 1976 (let’s just call it Lab for short) and, at the same time delta-E 1976 (dE76) came into being. If you can imagine attaching a string to a color point in 3D Lab space, dE76 describes the sphere that is described by all the possible directions you could pull the string.

What is the minimum delta E required to see a difference?

The minimum Delta E for seeing a difference is about 2. Smaller differences can normally be detected in neutral colours (such as our samples), while more saturated colours require a slightly larger Delta E. A Delta E of 4 is the upper threshold for acceptable machine repeatability or consistency.

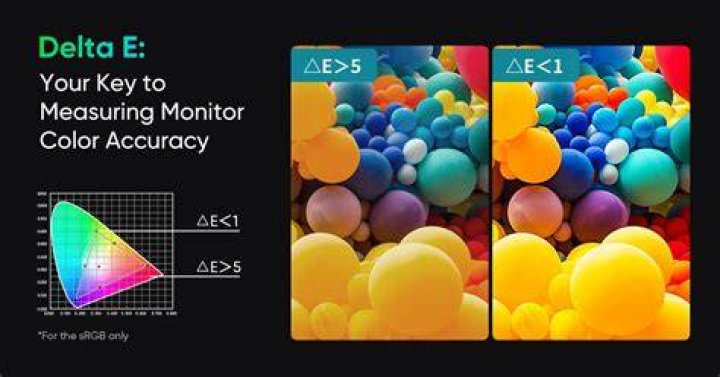

What does Delta E level mean for projectors?

When you’re shopping for a projector or digital display, you’ll want to find a device with a Delta E level that is as close to zero as possible. Delta E levels are the difference between the displayed color and the original color standard of the input content.
