A tree diagram is a tool in the fields of general mathematics, probability, and statistics that helps calculate the number of possible outcomes of an event or problem, and to cite those potential outcomes in an organized way.

Is a tree diagram a probability model?

A probability tree diagram is a handy visual tool that you can use to calculate probabilities for both dependent and independent events. To calculate probability outcomes, multiply the probability values of the connected branches. To calculate the probability of multiple outcomes, add the probabilities together.

What is tree diagram in linguistics?

The tree diagram is a newer method for diagramming sentences that is most commonly used by linguists and other academic professionals. In a tree diagram, a sentence is divided into two parts: a subject and a predicate. They are made up of noun phrases or verb phrases.

What is tree diagram in math with examples?

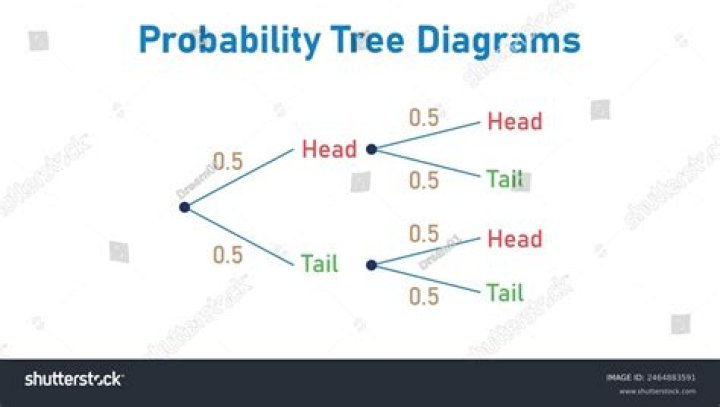

A common example used to introduce tree diagrams is to find the number of possible outcomes of flipping two coins in succession. In the tree diagram, we represent this by drawing two branches off of each of our last branches. These branches represent heads or tails on the flip of the second coin.

How do you draw a probability tree diagram?

How to Use a Probability Tree or Decision Tree

1. Step 2: Convert the percentages to decimals, and place those on the appropriate branch in the diagram.
2. Step 3: Draw the next set of branches.
3. Step 5: Multiply the probabilities of the first branch that produces the desired result together.

What is tree diagram in English language?

tree diagram in British English 1. a diagram that branches out to show many or all possibilities. 2. linguistics. a diagram showing the structure of a sentence.

What is tree diagram give example?

A common example used to introduce tree diagrams is to find the number of possible outcomes of flipping two coins in succession. We know that when we flip a coin, it will either land on heads or tails, so when we flip one of the coins, we have two possible outcomes: heads or tails.

What is a tree diagram in probability theory?

In probability theory, a tree diagram could be utilised to express a probability space. These diagrams may describe a sequence of independent events (for example a set of coin tossed) or conditional probabilities (like drawing cards from a deck, without substituting the cards).

What are the types of events in a tree diagram?

There are generally two types of events represented within tree diagrams. They are: 1. Conditional probabilities Conditional Probability Conditional probability is the probability of an event occurring given that another event has already occurred. The concept is one of the quintessential

What is a pro-probability diagram?

Probability diagrams are very intimidating when you look at them for the first time. However, we hope to make them more straightforward in this diagram. To put it simply, a probability diagram or math tree diagram shows the possible outcomes of a situation.

How do you use a treetree diagram?

Tree diagrams start with an event – also known as a parent or head – and then branch off into additional possible events, each having a percentage of probability. The branches are multiplied to determine the total probability of that series of events actually occurring; all probabilities totaled together should equal 1.0.
