Helmholtz resonators are used in architectural acoustics to reduce undesirable low frequency sounds (standing waves, etc.) by building a resonator tuned to the problem frequency, thereby eliminating it.

What is meant by Helmholtz resonator?

A Helmholtz resonator or Helmholtz oscillator is a container of gas (usually air) with an open hole (or neck or port). At the Helmholtz resonance, a volume of air in and near the open hole vibrates because of the ‘springiness’ of the air inside. The air in the body of a guitar acts almost like a Helmholtz resonator*.

How do you calculate Helmholtz resonator?

The theoretical formula for the Helmholtz resonator is(1) f = c 0 2 π S V · l a where f is the resonant frequency, C0 is the velocity of sound in the air, S is the cross-sectional area of the short tube, V is the volume of the acoustic cavity, and la is the total length of the short tube, the actual length of the short …

Which part of a guitar acts as a Helmholtz resonator?

The air cavity of a string instrument, such as the violin or guitar, functions acoustically as a Helmholtz-type resonator, reinforcing frequencies near the bottom of the instrument’s range and thereby giving the tone of the instrument more strength in its low range.

How does Helmholtz resonator absorb sound?

A traditional Helmholtz resonator is a rigid-walled cavity and an open neck, which result in one acoustic resonance. By applying the soft materials, the dynamics of the compliant walls and the material impedance are coupled to the acoustic pressure filed in the cavity.

What is neck correction in Helmholtz resonator?

The effect length of the neck increases the accuracy of the resonance frequency prediction by adding the correction length to the measurement length ( ) of the neck. It can be seen that as the cavity volume increases or the effect length of the neck increases, the resonance frequency decreases.

Why is neck correction required in Helmholtz resonator?

volume of cavity. The effect length of the neck increases the accuracy of the resonance frequency prediction by adding the correction length to the measurement length ( ) of the neck. Thus, the neck extension is effective in lowering the resonance frequency [6].

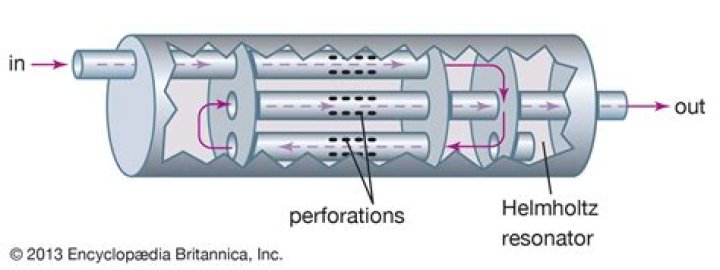

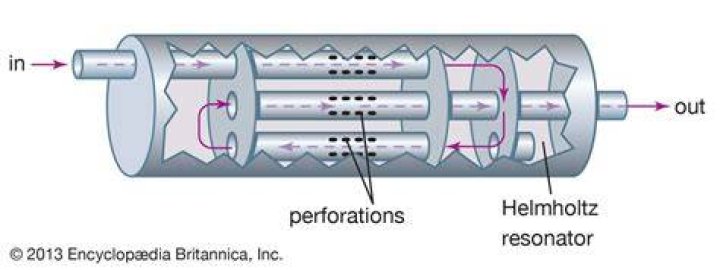

How do I stop my exhaust from droning?

Adding a resonator is the best way to get rid of drone. A muffler also has a good probability of success. If you don’t want to go with either of these components or haven’t gotten results, you can try adding sound insulation or modifying other parts of the exhaust system.

What is a Helmholtz resonator?

The underlying theory of a Helmholtz resonator is quite simple – it is related to the 1-D mass-spring system, which has a natural resonance frequency 1 fos 2kMwhere ksis the spring constant (N/m) of the spring and Mis the mass (kg).

How do you calculate the absorption coefficient of a Helmholtz resonator?

When a series of Helmholtz resonators is used as an absorbing surface, the absorption coefficient can be calculated in a manner similar to that used for a perforated plate. where a is the radius of the resonator neck, l 0 is its length, and V its volume. The question then is how to calculate the depth, d, of the cavity.

How does a a resonator work?

A resonator not only ‘sucks in’ sound energy at resonance but also scatters a proportion of the incident energy omnidirectionally by means of radiation from the mouth, in a similar manner to a circular loudspeaker at low ka. The scattered power at the resonance frequency is given by

How sensitive is a resonator?

The foregoing analysis reveals the sensitivity of the performance of a resonator as a narrow-band absorber to the relative magnitudes of the internal acoustic resistance and the radiation resistance. Unless they are rather similar, the absorber will not perform effectively.
