The BJT circuit shown in Fig. 1 acts as an inverter: When the input voltage is low, the transistor does not conduct, there is no current through RC, and the collector voltage (output) is pulled up to VCC.

Which transistor is used in inverter?

The simplest inverters use switching devices which can interrupt the flow of current. Presently, such inverters utilize the bipolar junction transistor (BJT), the field-effect transistor (FET), or the gate-turn-off thyristor (GTO).

Why we use transistors in inverters?

The transistor can now conduct current across from the drain to source. Now the voltage is no longer concentrated across the resistor. It’s concentrates mostly on the transistor. So as you increase the voltage going into the gate, it allows a greater current to flow through.

Where do we use BJT?

The main basic function of a BJT is to amplify current it will allow BJTs are used as amplifiers or switches to produce wide applicability in electronic equipment include mobile phones, industrial control, television, and radio transmitters. There are two different types of BJTs are available, they are NPN and PNP.

How many transistors are in an inverter?

A basic CMOS inverter uses 2 transistors. Inputs can be added by using transistors with several gate contacts. It works when that gate is one among many others, driving a few similar gates.

How does a BJT work?

How does BJT Work? For an NPN transistor, it consists of a layer of P-doped semiconductor between two layers of N-doped material, where electrons are passed from the emitter to the collector instead. The emitter then “emits” electrons into the base, with the base controlling the no. of electrons the emitter emits.

What is BJT transistor?

Bipolar Junction Transistor

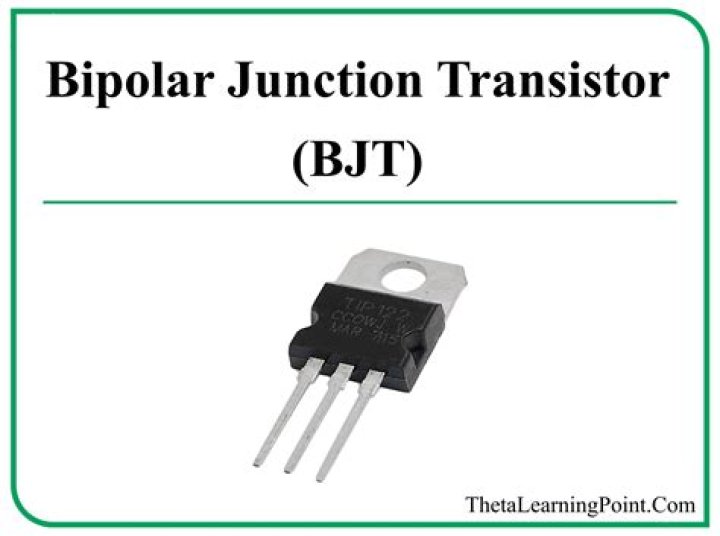

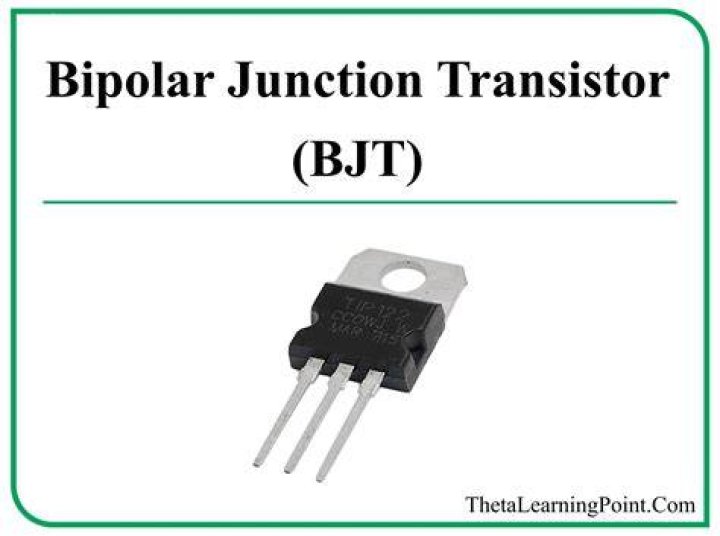

A Bipolar Junction Transistor, or BJT, is a solid-state device in which the current flow between two terminals (the collector and the emitter) is controlled by the amount of current that flows through a third terminal (the base).

What is BJT circuit?

A bipolar junction transistor (BJT) is a type of transistor that uses both electrons and electron holes as charge carriers. In contrast, a unipolar transistor, such as a field-effect transistor, uses only one kind of charge carrier. Hundreds of bipolar junction transistors can be made in one circuit at very low cost.

Where are BJT used?

How does the BJT inverter work?

The BJT inverter displayed below contains a DC voltage source input, varying from 0V to 5V, connected to a 10KO resistor set on the base of the BJT. A 5V Voltage source connected to a 1O resistor is on the collector of the BJT, while the emitter of the BJT is connected to the ground.

What does BJT mean in electronics?

Transistors: Bipolar Junction Transistors (BJT) General configuration and definitions The transistor is the main building block “element” of electronics. It is a semiconductor device and it comes in two general types: the Bipolar Junction Transistor (BJT) and the Field Effect Transistor (FET).

What is a logic inverter (NOT gate)?

This is a simple logic inverter (NOT gate) using an NPN BJT. An SPDT switch and a square wave were provided to serve as input signals. Switch Ssel selects between these two input sources. Slogic is intended for Interactive mode while the square wave is intended for Transient mode.

Where is the voltage source on a 5V BJT?

A 5V Voltage source connected to a 1O resistor is on the collector of the BJT, while the emitter of the BJT is connected to the ground. The voltage output is located in between the collector and the 1kO resistor at voltage node V(4).
