1/4W means – The maximum power dissapation should not exceed 250mW. 1/2W means- The maximum power dissapation should not exceed 500mW. U have to calculate the current through the resistor according to ur resistor value and find the power dissipation. P = I * I * R.

Do resistors have voltage ratings?

The voltage rating is for the resistor series typically and specifies the maximum peak voltage you can apply without danger of damaging the resistor due to corona, breakdown, arcing, etc. The power rating is completely independent of the voltage rating.

What is the watt rating on resistors?

The power rating of a resistor indicates how much power a resistor can handle before it becomes too hot and burns up. Power is measured in units called watts. The more watts a resistor can handle, the larger and more expensive the resistor is. Most resistors are designed to handle 1/8 W or 1/4 W.

Can I use 1w resistor instead of 1 4w?

Yes, but conservative designs usually derate dissipation for increased reliability.

How do I know what wattage resistor I need?

Unfortunately, you can’t tell a resistor’s power rating just by looking at it. Unlike resistance and tolerance, there are no color codes for wattage. However, the size of the resistor is a good indicator of its power rating. Power ratings are written on the packaging when you buy new resistors.

Does wattage matter on resistor?

Do resistors have a voltage rating?

The power rating and voltage rating of a resistor are one common source of confusion. This far exceeds the power rating of the part. Conversely, for high resistance values, the amount of electrical energy that the 0603 resistor can withstand is determined by the working voltage rating of 75 volts.

Do resistors lower voltage or current?

Yes, it does. A circuit always has a bit of resistance, no matter if it has resistors or not in it. Even wires have a little bit of resistance. So let’s imagine a circuit – any kind of circuit – and say that it’s current is 1 ampere.

What is a high voltage resistor?

High-voltage resistors are used for office equipment and home appliances such as printers, copying machines, and air-conditioners. Offering high resistance and small deviation values, our products enable reduced set circuit signal inconsistencies and more reliable final products.

What is the standard value of a resistor?

Standard Resistor Values. This page provides a quick reference for standard resistor values based on a specified tolerance. Standard Resistor Values : 0.1%, 0.25%, 0.5%. Standard Resistor Values : 1%. Standard Resistor Values : 5%. Standard Resistor Values : 10%.

What is the wattage of a resistor?

Resistors can have wattage ranges that start from 0.03 watts to kilowatts and higher. Resistors can allow only a limited current amount passing through them.Once the current passes through the resistor , it produces heat.If the heat is too great , then the resistor will burn down.

What is a standard resistor?

A standard resistor is a resistor which is precise enough in value and stable enough in temperature coefficient to be used as a calibration standard. Used in metrology labs to calibrate ohmmeters , resistance bridges, etc.

What are the dimensions of a resistor?

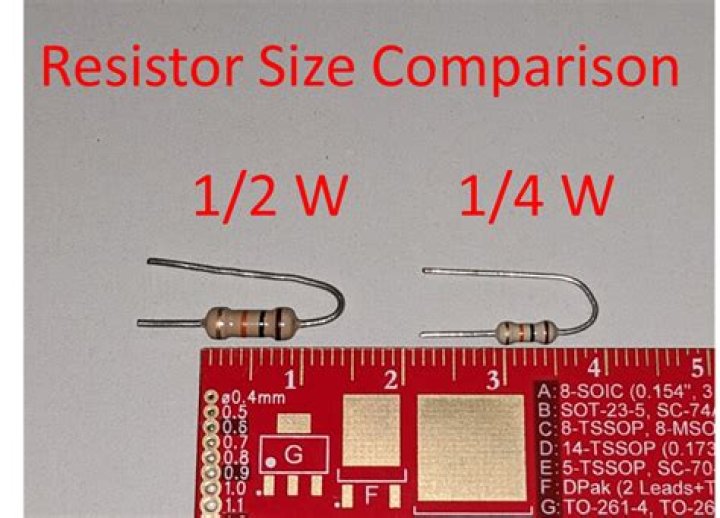

A common ½W resistor measures about 9.2mm across, while a smaller ¼W resistor is about 6.3mm long. A half-watt (½W) resistor (above) sized up to a quarter-watt (¼W). Surface-mount resistors are usually tiny black rectangles, terminated on either side with even smaller, shiny, silver, conductive edges.
