A three-way ball valve has three ports or openings that are connected to piping or tubing for gas or fluid flow (media) to pass through. These ports are usually described as one inlet and two outlet ports or one outlet and two inlet ports depending upon the flow direction through the valve.

How do 3 way valves work?

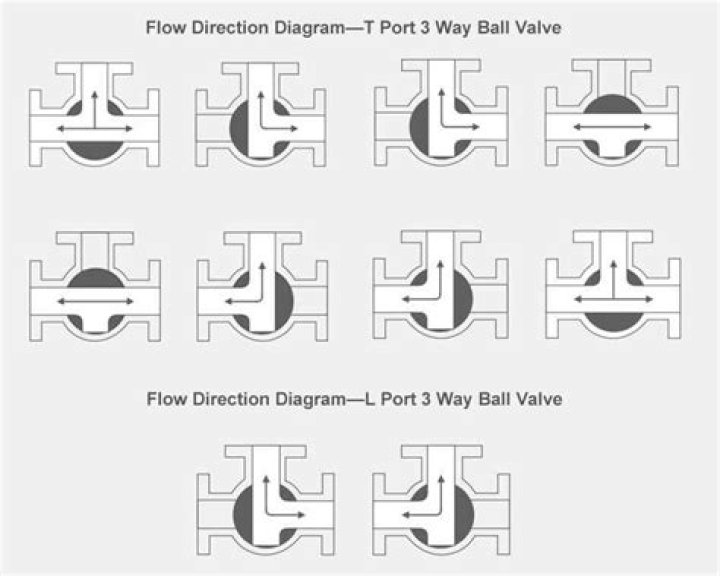

A 3-way ball valve works by turning the handle, which rotates a ball in the valve body, to align the cut-out channels in the ball with the inlets and outlets of the valve. The “L” shape cut-out of the ball on an L-port valve sends fluid through 90 degrees from one port to another.

What is a 3-way valve used for?

A 3-way control valve shuts off water flow in one pipe while opening water flow in another pipe. In a modulating or 3-point floating application the valve can also mix water from two different pipes into one pipe or divert water from one pipe into two different pipes.

What is a 3-way 2 position valve?

Three-way, 2-position valves typically feature a three-ported design allowing flow paths in several different configurations, while only connecting two ports in any single position. The valve consists of a series of tapered cylinders with diameters that get smaller from top to bottom.

What is the purpose of 3-way valve?

How reliable are PVC ball valves?

Ball valves are durable, reliable and securely shut off flow even after sitting idle for long periods of time. Because of this, they are frequently used as fluid and gas flow cut-off valves. Ball valves are also easy to operate.

Are PVC ball valves directional?

A ball valve, generally has no “direction of flow”. But to save you time and aggravation, don’t use the pvc ball valve.

Which way does a ball valve go?

1) Ball valves are designed to be opened by rotating the lever handle in a counterclockwise direction, and closing in a clockwise direction. The handle indicates the ball port direction. 2) Under certain conditions, throttling flow in the near-closed position can destroy the valve seats.

What is a 3 way valve used for?

What is a three way ball valve?

A three-way valve will have at the center of the apparatus either a ball valve element, globe valve element or gate valve element. The element determines how the flow of water or other liquid is channeled through the three ports in the valve. The most typical three-way valve is the ball valve.

What is a 3 Way bypass valve?

3-Way Zone Valves. A 3-way zone valve is a bypass version of a 2-way zone valve with 3 ports, commonly used with fan coils, heating units or other central heating equipment. On Taco 560 series valves, bottom port is always a bypass inlet, which remains closed while equipment is in use.

What is a 3 way pneumatic valve?

3-Way Solenoid Valves Used to operate single acting cylinders or as a simple device to blow air. 3 ports – Air in from compressor (usually marked “P”), Air out to device (usually marked “A”), Exhaust out (usually marked “EA”). Hook up supply air to inlet, when power is applied solenoid opens and air release out of outlet.

What is a 3 way hydraulic valve?

The 3-Way Directional Valve block represents a directional control valve with three ports and two positions, or flow paths. The ports connect to what in a typical model are a hydraulic pump (port P), a storage tank (port T), and a single-acting actuator (port A).
