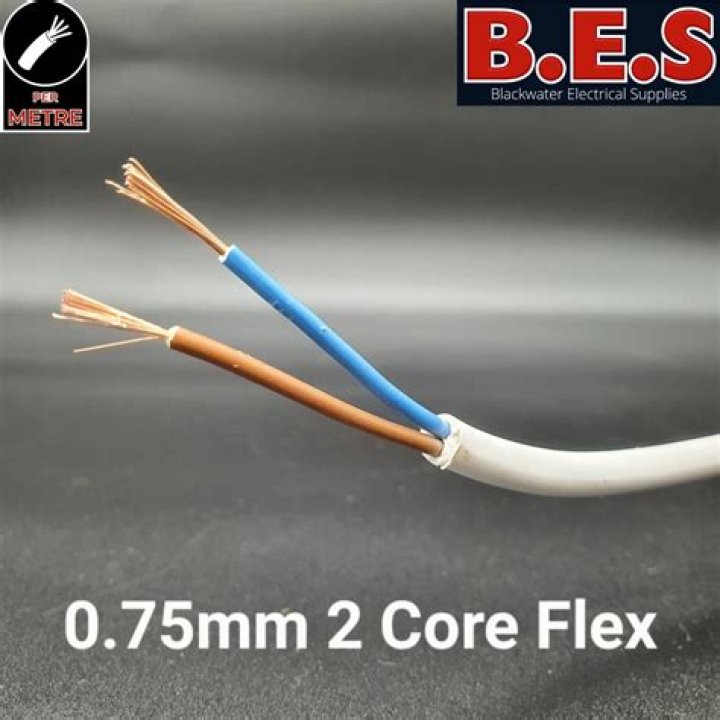

What is 2 core flex used for?
Rachel Hunter Two core flex: This type of cable is used to connect small appliances which are double insulated and need no earth. The cable only has two cores being live and neutral.
What diameter is flex cable?
3182Y / H05VV-F Cable Flexible Cord
| CSA (mm2) | Construction | Nominal diameter (mm) |
|---|---|---|
| 0.75 | 24/0.2mm | 6.8 |
| 1.0 | 32/0.2mm | 7.2 |
| 1.25 | 40/0.2mm | 7.8 |
What is the difference between a flexible cable and a flexible cord?
Flexible cable is any cable that is flexible and easy to bend while flexing cable is designed for a certain amount of flex life cycles during an application’s runtime. …
What type of cable is flex?
FFC is a miniaturized form of ribbon cable, which is also flat and flexible. The cable usually consists of a flat and flexible plastic film base, with multiple flat metallic conductors bonded to one surface.
What is 1.5 mm cable used for?
1.5 mm is most commonly used for lighting circuitry and switches. 2.5 mm is most commonly used for ring mains, plug and socket wiring. 4 mm is most commonly used for high power ring mains, plug and socket wiring. 6, 10 and 16 mm are most commonly used for high powered small appliances such as cookers.
What is 1.5 mm Flex used for?
You will find twin core and earth cabling used all over your home in a variety of sizes. 2.5mm is commonly used for behind sockets, while 1-1.5mm is most often used for lights (depending on how many lights you have in a circuit).
How many amps can 1.0 mm Flex take?
Choosing the correct size flex
| Conductor Size | Current | Maximum power (Watts) |
|---|---|---|
| 0.75 mm2 | 6 amps | Up to 1440 Watts |
| 1.0 mm2 | 10 amps | Up to 2400 Watts |
| 1.25 mm2 | 13 amps | Up to 3120 Watts |
| 1.5 mm2 | 15 amps | Up to 3600 Watts |
What is flex cable used for?
What is flex? Flex connects your appliances and pendant lights to the fixed wiring. It’s usually round in cross-section and contains three cores within a white or coloured PVC outer sheath (although irons can use non-kinking rubber-sheathed flex with a braided outer covering).
Can Flex be used for fixed wiring?
Flexible cables may also be used for overhead wiring between buildings. Regulation 521.9. 1 permits the use of flexible cables for fixed wiring if they are of the heavy duty type or the risk of damage is low or protection against mechanical protection is provided.
How many amps can 1.0 mm carry?
Choosing the correct size cable
| Conductor Size | Current | Maximum power (Watts) |
|---|---|---|
| 1.0 mm2 | 10 amps | Up to 2400 Watts |
| 1.25 mm2 | 13 amps | Up to 3120 Watts |
| 1.5 mm2 | 15 amps | Up to 3600 Watts |
| 2.5 mm2 | 20 amps | Up to 4800 Watts |
How much power can a 1.5 mm cable carry?
Depending on the installation method used, the 1.5mm cable has a maximum rated capacity of between 14 and 20 amps, so its right on the limit.
Where can I buy 2 core flexible cable?
2-Core Flexible Cable | Cable & Cable Management | Screwfix.com Buy 2-Core Flexible Cable at Screwfix.com. Thousands of products. 30 day money back guarantee. Thousands of customer product reviews. UK call centre ready for your call 24/7.
What is Finolex 1mm 2 core 100m flexible wire?
This Finolex 1mm 2 Core 100m Flexible Wire is PVC insulated and round sheathed wire featuring a bright annealed bare copper conductor and is ideal to use where the voltage grade is upto 1100V.
How much does it cost to buy PVC cable UK?
1+ £2.55 (£3.06) 3+ £2.40 (£2.88) This item has been restricted for purchase by your company’s administrator. Ordinary duty, PVC cable for use in domestic appliances, kitchens and offices.
What is Ord ordinary duty PVC cable?
Ordinary duty, PVC cable for use in domestic appliances, kitchens and offices. • Generally unsuitable for outdoor use or industrial applications • For use with light portable appliances such as table lamps and office equipment • Plain annealed copper condu… You previously purchased this product. View in Order History
