IP65

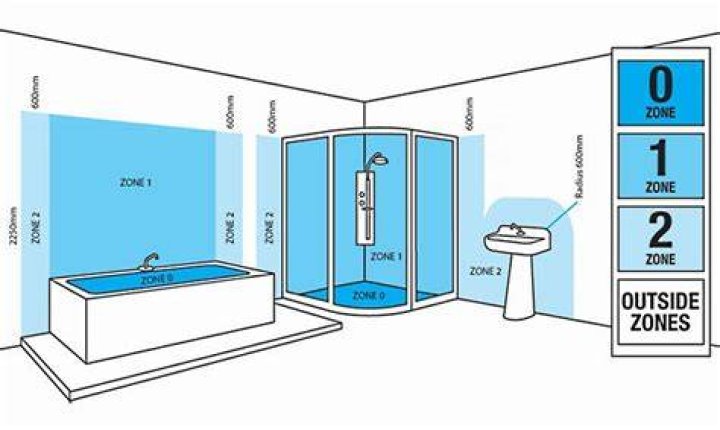

Zone 1 is the area above the bath or shower to a height of 2.25m from the floor. In this zone a minimum rating of IP45 is required but it is generally accepted that IP65 is to be used. It’s also worth noting that most shower lights are rated at IP65 in any case.

Can I use IP44 above shower?

Only 12V SELV (Safety Extra Low Voltage) equipment can be used. Requires a minimum of IP44. This is the area directly above a bath and within a shower cubicle, up to 2.25M in height. Same as above, requires a minimum of IP44.

Is IP65 suitable for a shower?

With IP65 downlights, your total light protection can be installed over your shower or bath without the danger of any possible safety issues (such as electrocution), something that can not be guaranteed with IP64 or less downlights.

Can IP54 be used in bathroom?

With all bathroom lights, placement i.e. where in the bathroom you wish to install the light will determine the types available as the bathroom is split into zones. Any lights in this zone must be IP55 or higher i.e spray proof. Zone 2 – This area must have splash proof lights so IP44 or IP54 or higher.

Is IP65 better than IP44?

At the Electrical Counter, we offer an extensive range of IP44 lights that are suitable for indoor and some outdoor purposes. If you’re looking for a product to go in a garden where it is likely to be exposed to high velocity water (such as heavy rainfall), we would recommend an IP65 rated product instead.

Where is Zone 3 in a bathroom?

Bathroom Zone 3 (Outside Zones) Zone 3 is anywhere outside zones 0, 1 and 2 (subject to specific limits) and where no water jet is likely to be used.

What is IP20 and IP65?

By IP-protection IP20 – Dry spaces IP44 – Moist spaces IP65 – Wet spaces All recessed downlights.

What IP rating is waterproof?

The ratings widely accepted as ‘waterproof’ for most general purposes are IP65, IP66 and IP67. However, one common misconception regarding weatherproofing is that items intended for prolonged outdoor use require the highest numerical IP ratings for moisture resistance.

What is IP44?

IP44 Rating Each digit is individually ranked from 0 to 6 (solid protection) and 0-9 (liquid protection), with 0 being no protection. An IP44 rating means that your product will be protected from solid particles that are over 1mm in size and from low velocity sprays of water from every direction.

Which is more waterproof IP44 or IP65?

IP44 rated light fittings are good for wall ligthing (especially if they are covered by a roof extention or something), but it is best for a light fitting to be IP65 rated, that is, to be waterproof and sealed for any dust and water particles.

What is the IP rating for shower Zone 0?

Zone 0 – Inside the bath or shower. Any fittings used here must be SELV (Separated Extra Low Voltage – max. 12Volts) and have a minimum rating of IPX7 (IP67) (protected against immersion in water – total immersion proof); Zone 1 – Above the bath or shower to a height if 2.25m. Recommended IP rating: IP65.

What IP rating do I need for a bathtub?

Zone 2 – The area stretching to 0.6m outside the bath or shower and above the bath or shower if over 2.25m. An IP rating of at least IPX4 (IP44) is required. In this zone, if there is likelihood of water jets being used for cleaning purposes, a minimum of IPX5 is required.

What is the minimum IP rating required for a shower curtain?

A minimum rating of IP44 is required The area stretching to 0.6m outside the bath or shower and above the bath or shower if over 2.25m. An IP rating of at least IP44 is required

What is considered outside the zone for a shower?

Above 2.5M is officially considered outside the zone. It also includes the area 1200mm radius from fixed plumbing connections in your shower (that’s your shower rose). ZONE 2 = 600mm radius outside Zone 1 of bath and shower AND 150mm ouside the vanity basin and a 400mm vertical projection above it.
