If a current source is forced through the capacitor, the electrons (charge) will be deposited in one of the plates, creating in turn a electrical field across them. The capacitance is measured in Farads (F) and defines the ratio between the amount of charge needed to increase one volt at the terminals of the capacitor.

What is the relation between current and voltage in a capacitor?

To put this relationship between voltage and current in a capacitor in calculus terms, the current through a capacitor is the derivative of the voltage across the capacitor with respect to time. Or, stated in simpler terms, a capacitor’s current is directly proportional to how quickly the voltage across it is changing.

Do capacitors in series have the same voltage?

When capacitors are connected in series and a voltage is applied across this connection, the voltages across each capacitor are generally not equal, but depend on the capacitance values.

What happens to voltage when capacitors are in series?

With series connected capacitors, the capacitive reactance of the capacitor acts as an impedance due to the frequency of the supply. This capacitive reactance produces a voltage drop across each capacitor, therefore the series connected capacitors act as a capacitive voltage divider network.

When a constant current is applied to a capacitor the voltage on the capacitor will?

Now, the equation of capcitor is I= C dV/dt. Hence V(t)= 1/C *integral(I dt)+ V(0). Hence, the voltage across the capacitor would increase linearly with time.

Is a capacitor a constant current source?

Since a capacitor can be likened to a tank, then a constant current flow into it will just accumulate charges, and when you accumulate that constant input, it will result to a linear graph. ex. 1 1 1 1 1 1 1 1 1 —> this serves as the constant current per time (t).

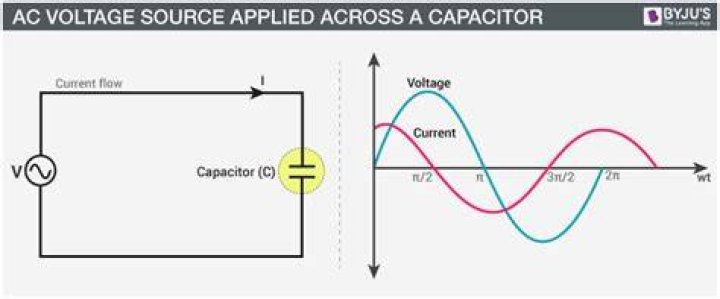

Why current is leading voltage in capacitor?

Leading current In circuits with primarily capacitive loads, current leads the voltage. This is true because current must first flow to the two plates of the capacitor, where charge is stored. Only after charge accumulates at the plates of a capacitor is a voltage difference established.

When capacitors are connected in series remains the same?

Explanation: When capacitors are connected in series, the charge remains the same because the same amount of current flow exists in each capacitor. Explanation: When capacitors are connected in series, the voltage varies because the voltage drop across each capacitor is different.

Why voltage is different in series combination of capacitors?

In a series combination, since the charge stored is the same as the same charge flows through all the capacitors, the potential difference across each will be different.

Do capacitors in series increase voltage?

Connecting capacitors in series increases the total working voltage but decreases the total capacitance. For example, two capacitors C1 and C2 with working voltages 5 volts and 10 volts have a total working voltage of Vt = 5V + 10V = 15V. However, the total capacitance is less than the value of the smallest capacitor.

Why are series capacitors used?

Series capacitors are used to compensate the inductance of transmission line. They will increase the transmission capacity and the stability of the line. These are also used to share the load between parallel lines. To compensate this, a shunt capacitor is connected which draws current leading the source voltage.

Why does current decrease when voltage increases in a capacitor?

Capacitor is like a bucket which is storing electrostatic energy , as a constant voltage or current is there to provide the energy . As the charge inside the capacitor increases exponentially more the current passing through the capacitor will decrease because it won’t allow any current to pass through it.

What happens when the series and capacitor values are different?

However, when the series capacitor values are different, the larger value capacitor will charge itself to a lower voltage and the smaller value capacitor to a higher voltage, and in our second example above this was shown to be 3.84 and 8.16 volts respectively.

What is the ideal current source of a capacitor?

As of course there are no ideal current source in reality it will stop when the capacitor reach the maximum voltage that the current generator can provide. F = C / V, so if your ideal current source is capable of generating an infinitely large voltage difference, it will also generate an infinitely large charge. CL.

What happens when a capacitor charges up to its capacity?

Given that both the current source and capacitor are ideal. If someone says the capacitor will be charging up to its capacity, what is the capacity of this capacitor? The voltage will be increasing over time as the current keeps charging. – The current source will stop charging because it’s maximum output voltage is reached.

What is the difference between current and voltage in capacitive circuit?

As with the purely capacitive circuit, the current wave is leading the voltage wave (of the source), although this time the difference is 79.325° instead of a full 90°. Voltage lags current (current leads voltage)in a series R-C circuit.
