There are 3 main types of impulse turbine in use: the Pelton, the Turgo, and the Crossflow turbine. The two main types of reaction turbine are the propeller turbine (with Kaplan variant) and the Francis turbine. The reverse Archimedes Screw and the overshot waterwheel are both gravity turbines.

What are the different types of turbine?

Types of Turbines Based on Energy Exchange between the water and the Machine

• Impulse Turbines.
• Reaction Turbines.
• Radial Flow Turbine.
• Tangential or Peripheral Flow Turbines.
• Axial Flow Turbines.
• Mixed Flow Turbines.
• Low Head Turbines.
• Medium Head Turbines.

What is the difference between an Impulse and reaction turbine?

The main differences between Impulse and Reaction turbines are, all hydraulic energy is converted into kinetic energy by a nozzle in the Impulse turbine and whereas In Reaction turbine Only some amount of the available energy is converted into kinetic energy.

What is impulse turbine?

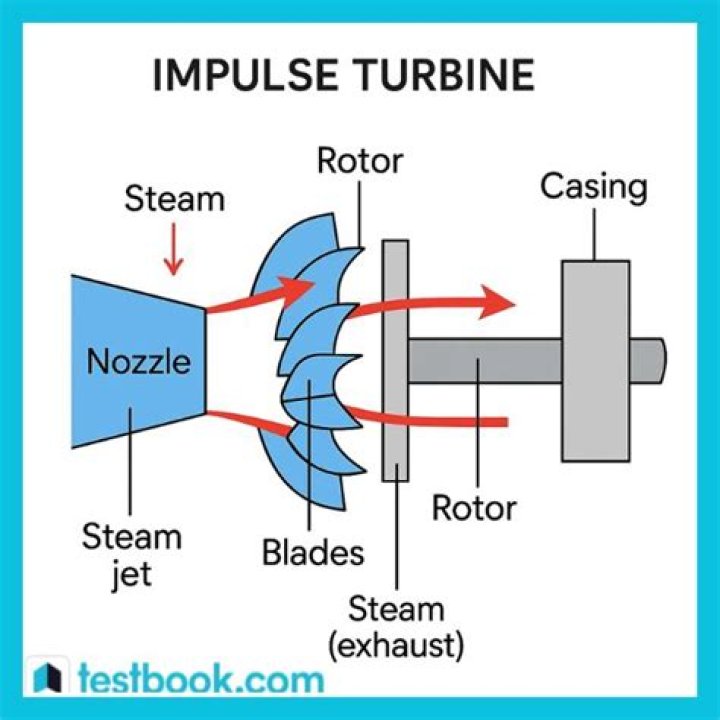

Impulse turbines are defined as turbines in which high-velocity jets of water or steam collide with the blades of the turbine to rotates the turbine and produce electricity using this winding. The impulse turbine is so named because it acts on the impulse force created for the striking blade of the water jet.

What is difference between impulse and reaction turbine?

Which is better impulse or reaction turbine?

For compressible working fluids, several stages of the turbine are often used to control the expanding gas effectively. Newton’s third law explains the energy transfer for reaction turbines. Reaction turbines are better fitted to higher flow rates or cases where the upstream fluid head (pressure) is low.

What is impulse turbine blade?

The blades of an impulse turbine are usually bucket-shaped so they catch the fluid and direct it off at an angle or sometimes even back the way it came (because that gives the most efficient transfer of energy from the fluid to the turbine). In an impulse turbine, the fluid is forced to hit the turbine at high speed.

What is a impulse turbine?

Impulse turbines are defined as turbines in which high-velocity jets of water or steam collide with the blades of the turbine to rotates the turbine and produce electricity using this winding. In impulse turbines, water hits the blade tangentially; hence it is also known as a tangent flow turbine.

What are the two types of impulse turbines?

The two main types of impulse turbine are Pelton and cross-flow turbines. in the 1870s, A Pelton wheel has one or more free jets discharging water into an aerated space and impinging on the buckets of a runner. Pelton turbines are generally used for very high heads and low flows.

Which is the best impulse turbine for high water heads?

Pelton Wheel is considered as the most popular impulse turbine which is used successfully all over the world. For high water heads and low discharge, impulse turbine is most suitable.

What is the difference between an impulse turbine and Pelton wheel?

An impulse turbine is generally suitable for high head, low flow applications. A pelton wheel has one or more free jets discharging water into an aerated space and impinging on the buckets of a runner.

Are Draft draft tubes required for impulse turbine?

Draft tubes are not required for impulse turbine since the runner must be located above the maximum tailwater to permit operation at atmospheric pressure. A Turgo Wheel is a variation on the Pelton and is made exclusively by Gilkes in England.
