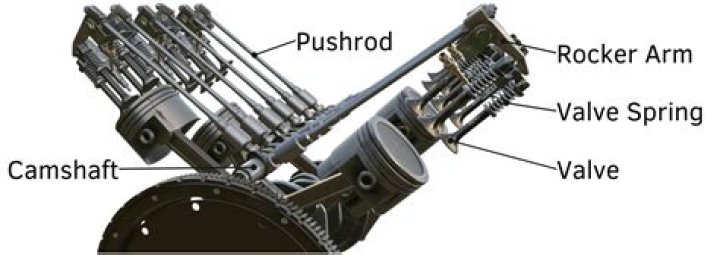

The valve train typically includes the camshaft, valves, valve springs, retainers, rocker arms and shafts. On engines with traditional mounting of the camshaft in the cylinder block, the valve train also includes lifters and pushrods.

What components are part of a typical OHC valve train assembly?

Components

• Camshaft.
• Pushrod.
• Rocker arm / bucket tappet.
• Valves.

What components are in an overhead cam engine?

Overhead cams Overhead cam engines have one or two camshafts per cylinder head. If there are two cams, one operates the intake valves and the other operates the exhaust valves. If there is a single overhead cam, the same came operates both the intake and exhaust valves.

How do I know if my valve train is bad?

5 Signs You’re Having Valve Train Issues

1. Blue smoke is coming out of the tailpipe. This can be caused when a worn valve allows oil to leak into the combustion chamber.
2. Engine is “missing” while idling.
3. Engine is backfiring.
4. There is a “clatter” in your engine.
5. There is a rattling or “tapping” sound in the engine.

What component of the valve train rides directly on the cam lobe?

Roller lifters are either mechanical or hydraulic. Designed into the lifter is a roller that rides the cam lobe, reducing friction between the camshaft and lifter. Friction between these two components is one of the highest friction points in an engine.

Do overhead cam engines have pushrods?

The motion of the camshaft is transferred using pushrods and rocker arms to operate the valves at the top of the engine. An overhead camshaft (OHC) engine also has overhead valves; however, to avoid confusion, Overhead valve engines that use pushrods are often called “pushrod engines”.

What causes valves to float?

Valve float occurs when the valvetrain gets out of control. It is caused by not having enough Valve Spring Pressure. Bounce – When the valve bounces off its seat, before it settles.

What does a bad valve sound like?

So, If a valve spring has broken or a camshaft lobe is worn down; it will cause the engine to create a tapping or clicking sound, due to the excess clearance. Valve train noise, is similar to a clicking sound of a, sewing machine. The sound frequency of the valve train noise is, one-half the crankshaft speed.

How do I stop my valves from chattering?

How to Eliminate Engine Valve Noise

1. Check the oil level in the engine; a level that’s either too low or too high can cause valve noise.
2. Remove the valve covers.
3. Disconnect the ignition coil.
4. Pour some penetrating oil down the valve guide while it is operating.
5. Turn the valve spring half a turn with a wrench.

What does a pushrod ride on?

Function. The roller ball at the lower end of the push rod rides on the lobes of the camshaft. The upper ball seats into a recessed cup on the underside of a rocker arm. As the offset lobe of the cam contacts the lower ball, the push rod is forced up and lifts the rocker arm.

Is DOHC better than pushrod?

It’s no surprise that the DOHC engine revs higher than the pushrod V-8. The reason it can do so is its improved breathing ability, which is largely due to its huge valve-curtain area.

What are the different parts of a valve train?

The following are the most common components in the valve train. Depending on the type of engine, there may be varying quantities of the parts listed below, or the engine may not contain all of the parts listed. The camshaft is a long shaft that goes through the head or the block of the engine, depending on what type of engine it is.

What is a rocker arm on an overhead cam engine?

In an overhead cam engine, the cam follower is built into the rocker arm in the form of a roller. Rocker shafts are simply the shafts that the rockers are on. This shaft is the pivot point for the rocker arms. It also conducts oil to the various rocker arms. Valve bridges are also sometimes called valve yokes.

How does the valvetrain work in an engine?

The valvetrain and how it works. The valve train refers to the assembly of components designed to open and close the intake and exhaust valves. Most new engines have overhead cam assemblies like the one shown. Other designs locate the camshaft lower in the engine and use push rods to move valve assemblies.

How do the cam lobe and valvespring work together?

In actuality, the cam lobe and the valvespring, when operating correctly, work in close harmony throughout the opening-closing cycle to produce the desired valve motion.
