6. Industrial applications of Differential Pressure Transmitters:

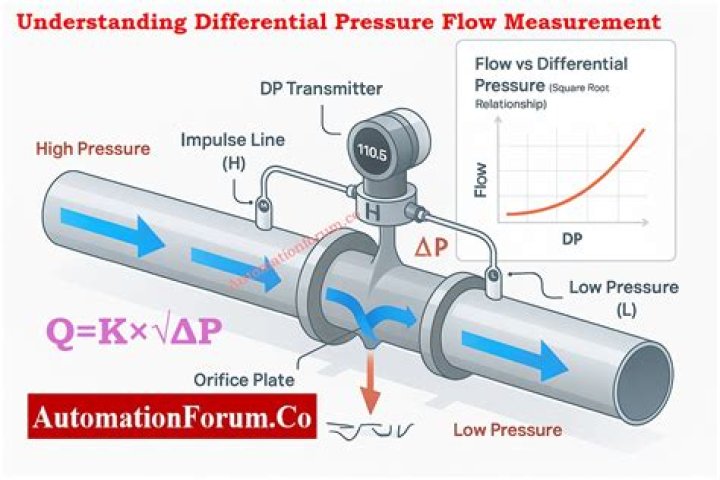

• Oil and Gas flow metering in onshore, offshore and subsea applications.
• Water and effluent treatment plants.
• It is used to monitor Sprinkler Systems.
• Remote sensing of Heating Systems for Steam or Hot Water.
• Pressure drops across valves can be monitored.

What is differential pressure transmitter application?

Differential pressure transmitters (also called DP transmitters) are among the most versatile measuring instruments. In addition to pressure, they are used to measure level and flow in many industries, on a wide variety of fluids even at high temperatures.

Where are differential pressure sensors used?

Differential pressure sensors often find a home in industrial environments where a difference in pressure can be used to determine the flow of gases or liquids. This can include effluent treatment plants, offshore and subsea gas and oil processing, and remote heating systems utilising heated water or steam.

What is a application gauge used for?

Application Pressure Gauge – This gauge shows how much air pressure you are applying to the brakes. (This gauge is not on all vehicles.) Increasing application pressure to hold the same speed means the brakes are fading. You should slow down and use a lower gear.

How does differential pressure transmitter work?

Any difference of pressure across the cell causes the diaphragm to flex in the direction of least pressure. If too much pressure is applied to that side, the isolating diaphragm will merely “flatten” against the solid frame of the capsule and stop moving. …

How do I choose a pressure transmitter range?

When selecting the measuring range of pressure sensors, two factors come into play:

1. Ensure that the sensor is not destroyed by overloading the sensing element by selecting a measuring range that is too small.
2. Avoid compromised accuracy or a too low output signal by selecting a measuring range that is way too large.

How do you choose a differential pressure transmitter range?

By dividing the range of the transmitter by the specific gravity of the fill fluid, it will give maximum vertical distance between pressure fittings that the transmitter can handle. As the specific gravity of a fill fluid increases, the transmitter’s span decreases.

How do you measure pressure using a level transmitter?

Hydrostatic level measurement is a really simple and reliable method of measuring level. A submersible pressure transmitter or a standard pressure transmitter is lowered to or mounted at a specific depth (zero level). The transmitter then measures the pressure caused by the weight of the liquid directly on top of it.

How does a differential pressure level transmitter work?

A differential pressure transmitter calculates level by measuring the differential pressure between the liquid and the gaseous phases of the fluid inside a closed tank. For precise calculations, important factors include: Geometry of the tank (horizontal or vertical, shapes of various lids and bottoms, etc.)

What is Application pressure gauge?

The Application Pressure Gauge tells you how much air pressure you are applying to the brakes. The harder you press the brake pedal, the higher the pressure. While not all air brake vehicles have this guage, most modern combination vehicles will have one.

How do you calculate differential pressure?

Calculate the differential pressure using the following equation: K = (1.59923 x P x (d^4) x p)/(W^2) Calculate “d” to the fourth power and multiply the answer by P x p x 1.59923. Calculate the square of “W”. Divide the answer in step 6 by the answer in step 7 to determine the differential pressure. Differential pressure gauges are available.

How to calculate differential pressure?

Formula: Differential Pressure = (1.59923 x P x d 4 x ρ) / W 2 Where, P = Change in Pressure d = Pipe Diameter ρ = Fluid Density W = Mass Flow Rate

How does a differential pressure transmitter work?

According to Coulton.com, a differential pressure transmitter works by sensing the difference between two different ports and then producing a signal that corresponds to a certain range of calibrated pressures. Usually this set of functions requires that the differential pressure transmitter be built with two different cases.

What is a DP level transmitter?

DP Level is a common measurement technique that is used in a wide variety of applications. Solutions include standard transmitter connections and integrated transmitters with direct or remote mount seals that can be configured in tuned, balanced, and electronic systems. Additional Wireless options are also available.
