Radiant heat can be used in slabs as thin as 1.5″ (such as in cases where it’s placed over existing floors). However, for new construction, the slab should be typically at least 4″ thick and is dependent upon the soils conditions in your area.

Can you put radiant heat on a concrete slab?

There are several manufacturers of electric radiant floor heating systems that can be placed directly on top of an existing concrete slab. These radiant floor heating systems can also be installed on top of a slab before the flooring goes down. There are several manufacturers of this type of radiant floor heating.

How much thickness does heated floor add?

Slightly elevates the floor height Overall, the height of the floor is typically only raised about ½ inch in most electric floor-heating projects.

How thick should a workshop floor be?

Standard Thickness The standard concrete garage floor is six inches thick and, with use of proper control joints, should be thick enough to withstand normal use.

What size PEX should I use for radiant heat?

PEX Tubing comes in several different sizes. The most common sizes of PEX Pipe for Radiant Heat Systems is 3/8 Inch, 1/2 Inch, 5/8 Inch and 3/4 Inch. Generally, for residential Radiant Heat Systems we recommend 1/2 Inch PEX Tubing.

What is a good temp setting for radiant heat floor?

typical operating temperature range for radiant floor heating systems at 85-140 °F (30-60C) though we agree that 140 deg. f. is a bit higher than suggested by other sources.

How thick is the Ditra heat mat?

5.5 mm
DITRA-HEAT allows you to protect the integrity of your investment and enjoy the luxury of heated floors. Only 1/4″ (5.5 mm)-thick, DITRA-HEAT provides the thinnest possible assembly without sacrificing performance.

How thick does a concrete slab need to be for a workshop?

A 5 to 6 inch slump would be easy enough to work with without compromising strength. After the concrete is troweled and sawed, you should apply a concrete curing & sealing compound to cure the concrete.

How thick should a concrete slab be for a workshop?

If these steps are performed correctly, the owner can expect an attractive, durable product. Standard concrete floor slab thickness in residential construction is 4 inches. Five to six inches is recommended if the concrete will receive occasional heavy loads, such as motor homes or garbage trucks.

How do you insulate a concrete slab for radiant heat?

Once the vapor barrier is in, you should insulate the slab from the earth. Extruded or expanded polystyrene (rigid blue or pink board) is the material of choice. Typically, we recommended 2″ but some states now require 3″ or R-15. Some promote the use of thin sheets of foil/bubble or an insulating blanket.

What is the minimum size of a concrete slab for radiant heat?

Concrete slabs are required to be 4” minimum. Plus whatever footing depth your locale requires. With radiant, you also need under slab insulation or you’ll spend a lot of money trying to heat up the earth below. I would assume you are referring to a layer of lightweight gypsum concrete.

How thick of concrete do I need under a radiant floor?

With radiant, you also need under slab insulation or you’ll spend a lot of money trying to heat up the earth below. I would assume you are referring to a layer of lightweight gypsum concrete. It is usually 1.5″ thick, but there is nothing inherently wrong with only 1″ thick when tile will be placed over it.

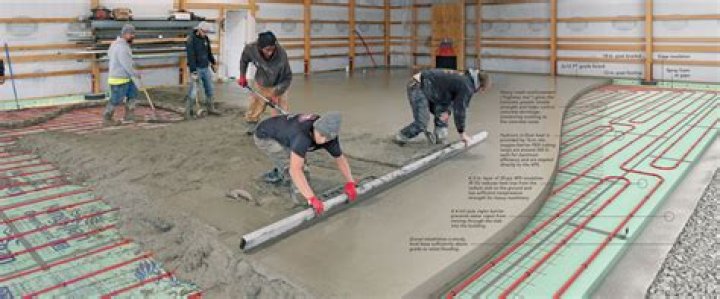

Can I install radiant floor heat tubing in a slab?

From a radiant heating perspective, it doesn’t matter if the slab is actually “at grade” or is poured several feet below grade as part of a full foundation. Check out our video How to Install Radiant Floor Heat Tubing in a Slab On Grade, and read this page for a full description. The final result will be a beautiful, radiantly heated sunroom.

What is a good thickness for a concrete slab for a shed?

A 4-inch slab is generally a good thickness for a typical shed. This concrete floor can be poured in most locales on a 4-inch base of compacted gravel.
