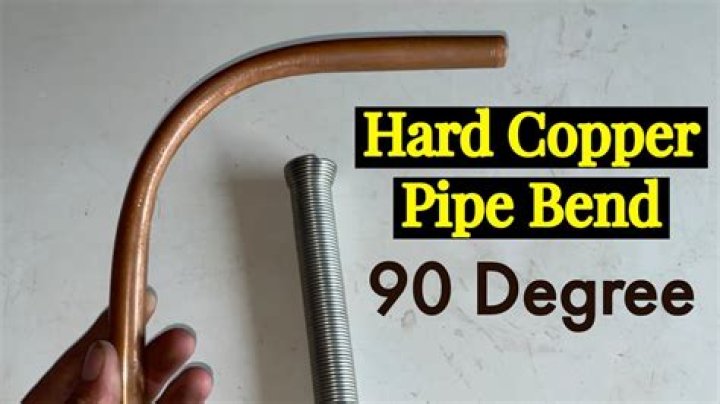

Use a Spring to Bend the Pipe Tube-bending springs fit in the copper pipe and act as support to better distribute the force. Bends as extreme as 180 degrees are possible with tube springs. Tube springs come in kits of various sizes that fit copper pipes ranging from 1/4-inch to 5/8-inch diameter.

How do you calculate the bend radius of a tube?

If you drew your arc from the inside of your bend, add 1/2 the tube outer diameter to get your true center-line radius. If you drew your arc from the outside (top) of your bend, subtract 1/2 of the tube outer diameter to get your true center-line radius.

Is it OK to bend copper pipe?

Copper plumbing pipe can be bent properly either with a bending spring or a proprietary plumber’s pipe bender which reduces the number of fittings that need to be used. This is one of the reasons plumbers bend pipes rather than simply cut the pipe and put a bend fitting like an elbow into the run to change direction.

What is the minimum bend radius suitable for bending 20mm copper tube?

Copper is relatively soft and can (with the right equipment and techniques) be easily bent to give a minimum bend of about 100mm (4 inch) radius (for 15mm pipe).

What is minimum bending radius of cables?

The minimum bending radius for cables with shielded conductors is twelve times the diameter of one phase conductor or seven times the overall diameter, whichever is greater.

What is a good bend radius for a 20mm diameter steel tube?

What that means is that if you have a tube OD (outside diameter) of 20 mm then the bend radius to choose, if you can, is 40 mm. It is possible to have a tighter bend radius, even as low as ½ x D, although anything below 2 x D will usually require costly tooling and probably mandrel bending.

What is the maximum radius of roll bending?

There is no maximum limit to the radius from roll bending, except of course leaving the tube straight, which is the same as an infinite bend radius! Obviously it always makes sense to check with your tube manipulator what tooling they have for the tube diameter that you have chosen before you start designing your component.

What are the different types of bend radius?

Often the tube is run backward and forwards between the rolls a number of times to achieve the desired bend radius. This type can be semi-manual, NC or CNC. The second type is where the rolls are free running rotationally and the tube is pushed through them (hence push bending).

What are the different methods of tube bending?

In order to understand the optimum design characteristics for tube bending and manipulation manufacture it is important to appreciate the different methods of tube bending. There are fundamentally three approaches known respectively as compression bending, draw bending and roll bending.
