How many amps can AWG handle?
William Cox Size & AMP Ratings
| NM, TW, & UF WIRE (Copper Conductor) | SE CABLE (Copper Conductor) |
|---|---|
| 12 AWG – 20 AMPS | 6 AWG – 65 AMPS |
| 10 AWG – 30 AMPS | 4 AWG – 85 AMPS |
| 8 AWG – 40 AMPS | 2 AWG – 115 AMPS |
| 6 AWG – 55 AMPS | 1 AWG – 130 AMPS |
What is an AWG rating?
AWG or American Wire Gauge is the US standard measure for the diameter of electrical conductors. The American Wire Gauge chart is based on the number of dies originally required to draw the copper down to the required dimensional size. It means the higher the AWG number is, the smaller the wire diameter is.
What is the current 22 AWG rating?
Amperes
| Insulation Materials: | Polyethylene Neoprene Polyurethane Polyvinylchloride (Semi-Rigid) | Kapton PTFE FEP PFA Silicone |
|---|---|---|
| 24 AWG | 6 | 10 |
| 22 AWG | 8 | 13 |
| 20 AWG | 10 | 17 |
| 18 AWG | 15 | 24 |
What is the maximum current for 14 AWG wire?
20 Amps
14 AWG – maximum of 20 Amps in free air, maximum of 15 Amps as part of a 3 conductor cable; 12 AWG – maximum of 25 Amps in free air, maximum of 20 Amps as part of a 3 conductor cable; 10 AWG – maximum of 40 Amps in free air, maximum of 30 Amps as part of a 3 conductor cable.

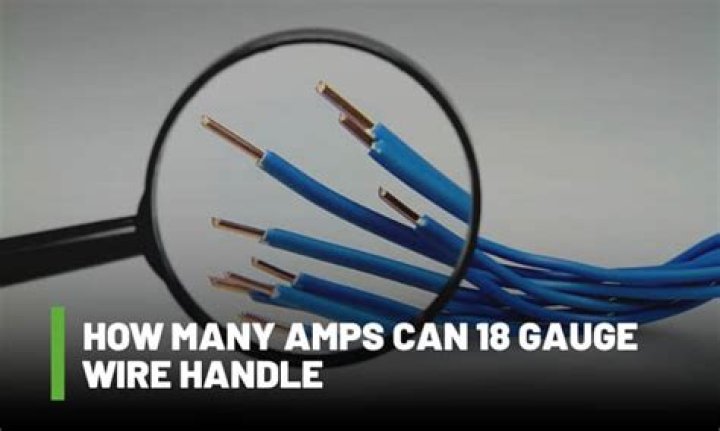

How much current can 18 gauge wire carry?
A conservative estimate for several feet of 18 AWG (American Wire Gauge) wire is 16 Amps. However, length plays an important role in the amount of Amps a wire can carry. If you have only 12 inches of wire, the 18 gauge wire can handle more than 16 Amps.
How many amps is a gauge?
Why Wire Gauge Is Important
| Wire Use | Rated Ampacity | Wire Gauge |
|---|---|---|
| Low-voltage lighting and lamp cords | 10 amps | 18-gauge |
| Extension cords (light-duty) | 13 amps | 16-gauge |
| Light fixtures, lamps, lighting circuits | 15 amps | 14-gauge |
| Kitchen, bathroom, and outdoor receptacles (outlets); 120-volt air conditioners | 20 amps | 12-gauge |
What is AWG in electrical?
American wire gauges (AWG) are a standard set of sizes for wire conductors — the smaller the wire gauge, the larger the diameter in inches or millimeters, and vice versa.
How much current can 16 AWG carry?
AWG #16 copper wire has a resistance of 4.016 Ω per 1000 feet, or 4.016 mΩ/foot, or 13.18 mΩ/m. If you need to keep the voltage drop along 1 m of wire to 100 mV or less, then you can’t push more than 7.59 A thru it. If you need to limit the power dissipation to 1 W/foot, then you can’t push more than 15.8 A thru it.
How many amps will 16 AWG carry?
13 Amps
| Types of Cord | Gauge Size Range | Ampacity of Current-Carrying Conductors (amperes) |
|---|---|---|
| 0 – 50 ft. (0 – 15.2 m) | ||
| SOOW – Service Oil Resistant Insulation/ Jacket Weather-resistant | 16 AWG | 13 Amps 10 Amps |
| 14 AWG | 18 Amps 15 Amps | |
| 12 AWG | 25 Amps 20 Amps |
What does 12 AWG mean?
12 AWG, 12 gauge, and #12. It starts with the somewhat peculiar abbreviation, AWG, which stands for American Wire Gauge. This numbering scheme was established way back in 1857, and today, remains the standard in North America that specifies the cross-sectional area of a conductor, and therefore its current carrying capability.
What is 14 AWG wire?
Electrical wire 14 AWG is a stranded copper wire, also known as THHN wire 14, that WesBell keeps in stock. It has a Thermoplastic insulation with a Nylon jacket that can be used outdoors and in conduit, but isn’t suited for underground use.
What size is 6 AWG wire?
Quick Answer. Wire labeled 6 AWG is wire that is assigned the number 6 using the American Wire Gauge standard. Wire assigned this gauge has a diameter of 0.16 inches or 4.11 millimeters, and a resistance rating of 0.40 ohms per foot, or 1.30 ohms per millimeter.
What does AWG measure?
The American Wire Gauge (AWG), a wire-sizing standard also known as the Brown and Sharpe wire gauge, is used in North America to measure and regulate the thickness of conductive wires made from nonferrous metals.
