Torque sticks, also known as torque-limiting extension bars, come in sets, each in a different thickness and color. The thicker the stick, the higher the torque to the fastener. The amount of force on the bolt is managed by its design. This prevents the nut to be tightened past the intended torque.

What is limiting torque extension?

LIMITS TORQUE EXTENSION: The torque stick limits the torque on wheel nuts to the specified rating on most vehicles, extending the life of thin wall impact sockets; Torque stick set helps prevent lug nut damage and warped rotors.

What is a torque extension bar?

Torque extension bars are widely used in both DIY and professional garages to quickly tighten lug nuts and other fasteners to pre-set torque designations. Each bar is color coded to help you quickly identify the torque value and stored within a convenient plastic storage case.

Does an extension change torque?

Adapters will affect the torque wrench setting if the distance changes between the fastener and the torque wrench handle. A straight extension will have no effect on the torque wrench setting.

Can torque sticks be used with a breaker bar?

Step 1: Select A Torque Stick With 20% Lower Torque Than Your Final Wheel Torque. Start by using a breaker bar (not a torque wrench) to break loose the wheel nuts. Torque sticks are used as extensions on air impact wrenches to stop applying torque when they reach a specified flex point.

Are torque sticks any good?

Now, we aren’t saying torque sticks are as accurate as torque wrenches, but they are accurate enough to be used for some less critical applications such as tightening wheel nuts. Of course, you should never use torque sticks to torque engine head bolts or pretty much anything else than lug nuts.

What does a torque limiter do?

Torque Limiters ensure that torque-based forces never exceed the set point. By limiting torque forces to what the rotational components can safely handle, these parts reduce mechanical overload and failures. They can work independently or in congruence with electronic sensors.

How is torque extension calculated?

The following formula has been used: M1 = M2 x L1 / L2….Torque Wrench Extension Formula

1. M1 is the torque setting of the wrench.
2. M2 is the actual torque applied to the nut.
3. L1 is the normal length of the wrench.
4. L2 is the extended length of the wrench.

Do Extensions lower torque?

What happens when you add an extension to a torque wrench?

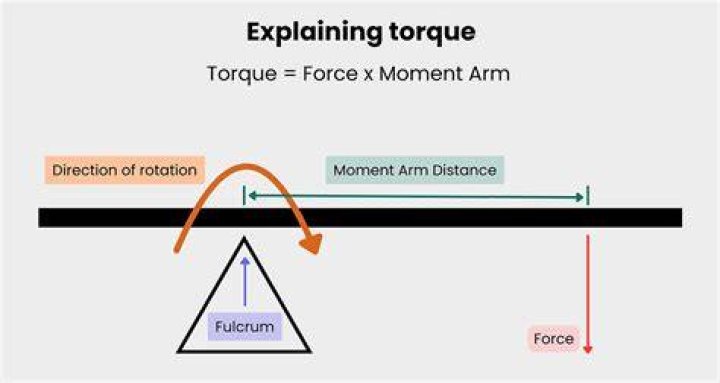

When you put an extension on a torque wrench (e.g. a crow foot or a dog bone) the torque applied to the fastener increases as the lever arm extends. The calculator will work out what value you should set into the wrench to achieve the required fastener torque.

Does an extension affect a torque wrench?

An extension does not affect the torque readings. Think equilibrium. Same torque at each end of the extension or else something is moving. Adding a “crow’s foot” wrench or something like that to the end of a torque wrench does affect the reading because you have lengthened the lever arm.

How do torque limiting sticks work?

Torque sticks, also referred to as a “torque limiting extension bar,” are an extension for your impact wrench, and they basically act like a shock absorber. They work on a torsion theory, which is just a fancy way of saying they flex at a certain rate, then stop applying torque when they reach a specified flex point.
